Handbrake lever - r+r

Operation 3380A10 · Handbrake control and linkage

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in the OFF postition, then disconnect the battery negative terminal.

Remove the handbrake boot.

1. Disconnect the electrical connection from the handbrake switch.

2. Completely undo the adjustment nut (2a) and remove the retaining clip (2b).

1. Undo the nuts (1a) and bolt (1b) and move aside the front heat shield for the exhaust pipe (1c).

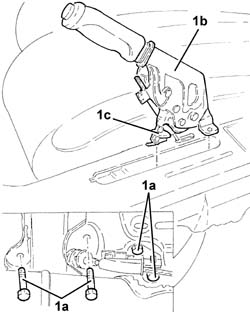

1. Undo the bolts (1a) and remove the handbrake lever (1b) complete with handbrake switch (1c).

Refitting

Place the handbrake lever, complete with handbrake switch, back in its housing.

Tighten the bolts securing the handbrake lever.

Refit in its seating the front heat shield for the exhaust pipe and secure it with its nuts.

Refit the retaining clip in its seating and partially tighten the adjustment nut.

Adjust the travel of the handbrake lever - 3380A04 handbrake - check travel.

Connect the electrical connection to the handbrake switch.

Place the handbrake boot back in its housing.

Connect the battery terminal (-).

Remove the car from the ramp.
