J50 Headlamp washer relay

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Relays › J50 Headlamp washer relay

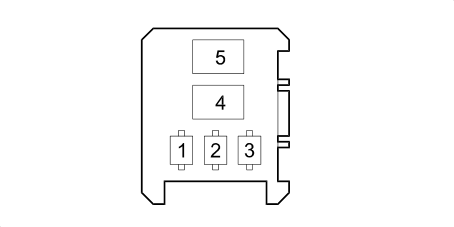

Connectors and pin-outsJ50 Headlamp washer relay

J50 Headlamp washer relay

3.2 V6 · GTA

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	S		B1A
2		AR	X	B2A	7
				K64	1
				D8B	1
3		BM		M1A	14
4	1,5	SG		N25	1
