J5 Starting enablement relay

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Relays › J5 Starting enablement relay

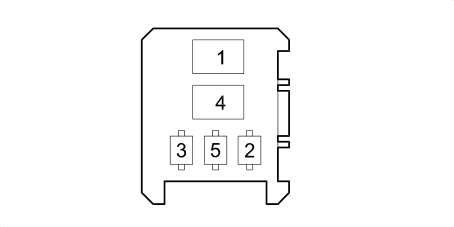

Connectors and pin-outsJ5 Starting enablement relay

J5 Starting enablement relay

2.0 TS · Selespeed gearbox

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LN	X	B1A	20
				B1C	12
				M54A	28
3		MV		M54A	42
4	1,5	MV		D4	10
5	1,5	MN	X	M54B	76
				H1A	3

3.2 V6 · GTA, Selespeed gearbox

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LN	X	B1B	1
				B1B	9
				B1A
				M10A	47
				M54A	28
3		MV		M54A	42
4	1,5	MV		D4	10
5	1,5	MN	X	M54B	76
				H1A	3
