D4 Front / engine coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Intermediate couplings › D4 Front / engine coupling

Connectors and pin-outsD4 Front / engine coupling

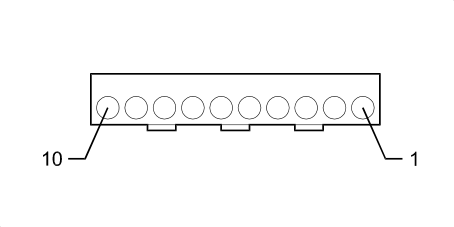

D4 Front / engine coupling

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RV		B1C	18
2		HG		M10A	60
5		MN		B1C	4
8		HN		M1A	19
9	1,5	L	X	B1C	7
				K41	2
10	1,5	M		B1C	19

2.0 TS · Selespeed gearbox

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RV		B1C	18
2		HG		M10A	60
5		MN		B1C	4
8		HN		M1A	19
9	1,5	L	X	B1C	7
				K41	2
10	1,5	M		J5	4

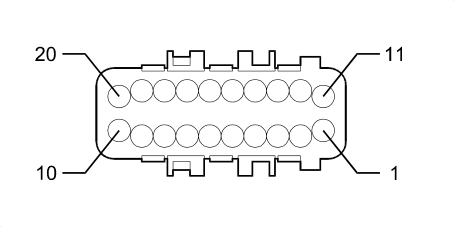

1.9 JTD 8V

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	BZ		M10A	15
3	1	BV		M10A	16
4	1	LN	X	B1C	6
				B1C	7
				K31	3
				M15C	3
5	1	BM		B1C	4
6		HM		D1	1
7		N		D1	2
8		HN		M1A	19
9	1	BN		M10A	17
10		M		B1C	19
11		BL		K31	1
12		HV		K81	1
13		BG		K81	2

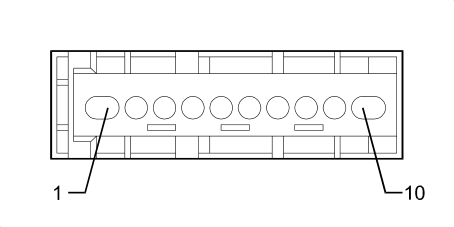

1.6 TS, 2.0 TS

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	V	X	A30A	2
				A30B	2
				A30C	2
				A30D	2
				N70A	1
				N70B	1
				N70C	1
				N70D	1
2		HG		K30
5		V		L20
8		H		A10A
9	1,5	L	X	K15	4
				K16	4
				K17	4
				L10	1
				L15	2
				N76	1
10	1,5	RN		A20B

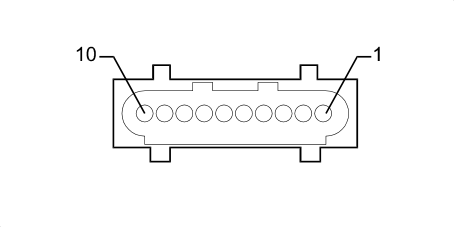

3.2 V6 · GTA

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	LR	X	A30A	3
				A30B	3
				A30C	3
				A30D	3
				A30E	3
				A30F	3
				N70A	1
				N70B	1
				N70C	1
				N70D	1
				N70E	1
				N70F	1
2		MB		D7	2
5		RV		L20
8		HG		D7	3
9	1,5	LN	X	K15	4
				K16	4
				K17	4
				K18	4
10	1,5	M		D7	1

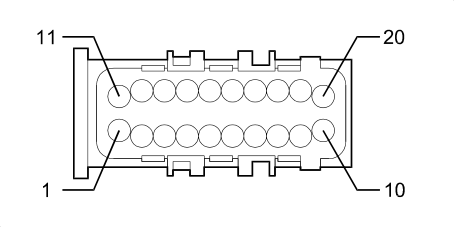

1.9 JTD 8V

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	BZ		L62	1
3	1	BV		L30	2
4	1	LN	X	L30	1
				L62	2
				L36	2
				K41	2
5	1	BM		L20	1
6		HM		K32	1
7		N		K32	3
8		HN		A10A
9	1	BN		L36	1
10		M		A20B
11		BL		M10B	105
12		HV		M10B	82
13		BG		M10B	83

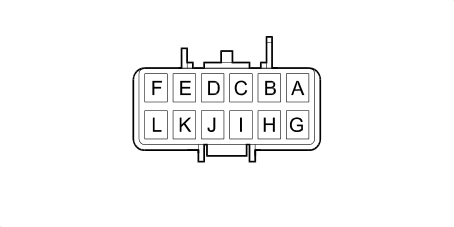

1.9 JTD 16V

Wiring	Colour
50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	1	LN	X	K41	2
				L30	1
				L62	2
				L36	2
F		M		A20B
G	1	BM		L20
H		HN		A10A
K		N		K32	3
L		HM		K32	1

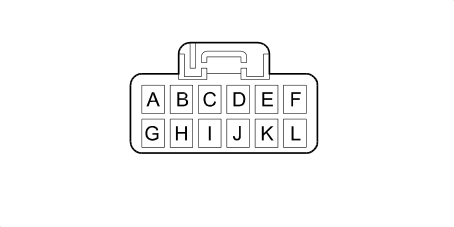

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	1	LN	X	B1C	6
				B1C	7
				M15C	3
F		M		B1C	19
G	1	BM		B1C	4
H		HN		M1A	19
K		N		D1	2
L		HM		D1	1

3.2 V6 · GTA

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		B1A
2		HG		M10A	60
5		LV		B1B	7
8		HN		M1A	19
9	1,5	L	X	B1B	5
				B1A
				K41	2
				L10	1
10	2,5	M		H1A	3

3.2 V6 · GTA, Selespeed gearbox

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		B1A
2		HG		M10A	60
5		LV		B1B	7
8		HN		M1A	19
9	1,5	L	X	B1B	5
				B1A
				K41	2
				L10	1
10	2,5	M		J5	4
