D68 Bose system coupling

Make: Alfa Romeo
Model: 147 Factory Service Manual
Year: 2000–2004
Section: Intermediate couplings › D68 Bose system coupling

‹ Prev D51 Direction indicators / front couplnig Next › D70 Driver's seat coupling

Connectors and pin-outsD68 Bose system coupling

D68 Bose system coupling

D68A – Cd multi

BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RN		P70	10
2		BN		P70	3
3		CN		P70	8
4		CB		P70	5
5		AG		P70	7
6		AR		P70	6
7		SN		P70	9
8		NZ		P70	4
9	1	H		P70	25

from 02/04 · 3-door, BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RN		P70A
2		BN		P70A
3		CN		P70A
4		CB		P70A
5		AG		P70A
6		AR		P70A
7		SN		P70A
8		NZ		P70A
9	1	H		P70A

from 02/04 · 5-door, BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		RN		P70A
2		BN		P70A
3		CN		P70A
4		CB		P70A
5		AG		P70A
6		AR		P70A
7		SN		P70A
8		NZ		P70A
9	1	H		P70A
				P70A

BOSE system, Right-hand drive

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		SN		P70	10
2		NZ		P70	3
3		CN		P70	8
4		CB		P70	5
5		AG		P70	7
6		AR		P70	6
7		RN		P70	9
8		BN		P70	4
9	1	H		P70	25

D68A

BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		P20B	5
2	1,5	BN		P20B	6
3	1,5	CN		P20B	7
4	1,5	CV		P20B	8
5	1,5	AG		P20B	1
6	1,5	AR		P20B	2
7	1,5	SN		P20B	3
8	1,5	NZ		P20B	4
9		H		P20C	6

BOSE system, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		P20B	5
2	1,5	NZ		P20B	6
3	1,5	CN		P20B	7
4	1,5	CV		P20B	8
5	1,5	AG		P20B	1
6	1,5	AR		P20B	2
7	1,5	RN		P20B	3
8	1,5	BN		P20B	4
9		H		P20C	6

D68B – Cd multi

BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		P70	17
2	1,5	BN		P70	16
3	1,5	CN		P70	20
4	1,5	CV		P70	21
5	1,5	AG		P70	22
6	1,5	AR		P70	23
7	1,5	SN		P70	18
8	1,5	NZ		P70	19

from 02/04 · BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		P70A	A11
2	1,5	BN		P70A	A11
3	1,5	CN		P70A	A7
4	1,5	CA		P70A	A8
5	1,5	AG		P70A	A5
6	1,5	AR		P70A	A6
7	1,5	SN		P70A	A9
8	1,5	NZ		P70A	A10

BOSE system, Right-hand drive

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		P70	17
2	1,5	NZ		P70	16
3	1,5	CN		P70	20
4	1,5	CV		P70	21
5	1,5	AG		P70	22
6	1,5	AR		P70	23
7	1,5	RN		P70	18
8	1,5	BN		P70	19

from 02/04 · BOSE system, Right-hand drive

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		P70A	A11
2	1,5	NZ		P70A	A11
3	1,5	CN		P70A	A7
4	1,5	CA		P70A	A8
5	1,5	AG		P70A	A5
6	1,5	AR		P70A	A6
7	1,5	RN		P70A	A9
8	1,5	BN		P70A	A10

D68B

04/01 to 06/02, up to 03/01 · 3-door, BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		D30	25
2	1,5	BN		D30	24
3	1,5	CN		D97F	3
4	1,5	CV		D97F	6
5	1,5	AG		D97E	3
6	1,5	AR		D97E	6
7	1,5	SN		D31	23
8	1,5	NZ		D31	24

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 3-door, BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		D30	25
2	1,5	BN		D30	24
3	1,5	CN		P30	1
4	1,5	CV		P30	2
5	1,5	AG		P31	1
6	1,5	AR		P31	1
7	1,5	SN		D31	23
8	1,5	NZ		D31	24

5-door, BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		D30	25
2	1,5	BN		D30	24
3	1,5	CN		D35	11
4	1,5	CV		D35	12
5	1,5	AG		D36	11
6	1,5	AR		D36	12
7	1,5	SN		D31	23
8	1,5	NZ		D31	24

04/01 to 06/02, up to 03/01 · 3-door, BOSE system, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		D31	23
2	1,5	NZ		D31	24
3	1,5	CN		D97F	3
4	1,5	CV		D97F	6
5	1,5	AG		D97E	3
6	1,5	AR		D97E	6
7	1,5	RN		D30	25
8	1,5	BN		D30	24

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 3-door, BOSE system, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		D31	23
2	1,5	NZ		D31	24
3	1,5	CN		P30	1
4	1,5	CV		P30	2
5	1,5	AG		P31	1
6	1,5	AR		P31	1
7	1,5	RN		D30	25
8	1,5	BN		D30	24

5-door, BOSE system, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	SN		D31	23
2	1,5	NZ		D31	24
3	1,5	CN		D35	11
4	1,5	CV		D35	12
5	1,5	AG		D36	11
6	1,5	AR		D36	12
7	1,5	RN		D30	25
8	1,5	BN		D30	24

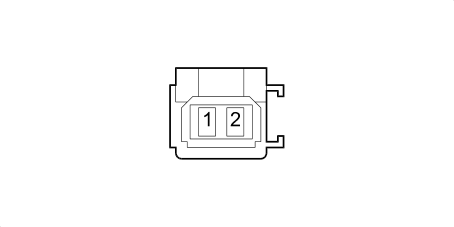

D68C – Cd multi

BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		P70	12
2	2,5	RG		P70	13

from 02/04 · BOSE system

Wiring	Colour
79 CD MULTI	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		P70B	H

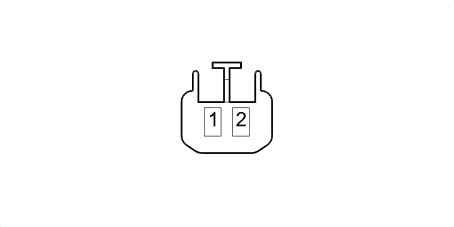

D68C

BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		B98	2
2	2,5	RG		B98	3

from 02/04 · BOSE system

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	R		B98	2
