D6 Front / rear coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Intermediate couplings › D6 Front / rear coupling

Connectors and pin-outsD6 Front / rear coupling

D6 Front / rear coupling

Wiring	Colour
Connectors	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		O50	1
2		MN		O51	1
3		BH		M54B	78
4		SG		D8B	7
5		SZ		H5A	2
6		SV		H5A	4
7	1,5	RV	X	M54A	27
				E47	5

Wiring	Colour
Connectors	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		D97H	4
2		MN		D97H	5
3		BL		M1E	1
4		SG		K3	3
5		SZ		K85	3
6		SV		K85	1
7	1,5	RV		B2D	11

Right-hand drive

Wiring	Colour
Connectors	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		D97H	4
2		MN		D97H	5
3		BZ		M1E	11
4		SG		K3	3
5		SZ		K85	3
6		SV		K85	1
7	1,5	RV		B2D	11

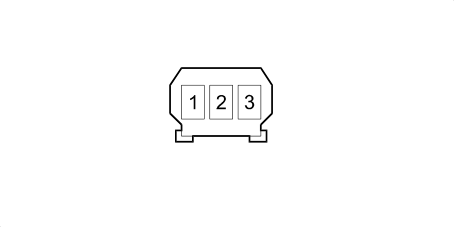

D6B

Xenon headlamps

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BR		D97M	9
2		B		F10	12
3		N		D97M	6

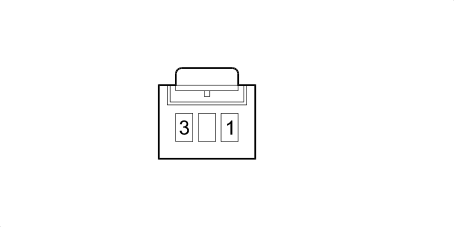

D6B – Rear

Xenon headlamps

Wiring	Colour
25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BR		K2	5
2		B		K2	4
3		N		K2	1
