H5 Stalk unit

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Manual electric controls › H5 Stalk unit

Connectors and pin-outsH5 Stalk unit

H5 Stalk unit

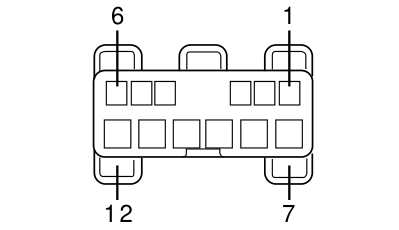

H5A

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GH		B1A	21
2		SZ		D6	5
3		BL		M1A	1
4		SV		D6	6
5		BH		M1A	13
6		V		N15	3
7	2,5	N		C10	15
8	2,5	H		N15	1
9	2,5	HG		N15	2
10	2,5	S		N22	1
11	2,5	AB		B2A	10
12	2,5	SN		N22	2

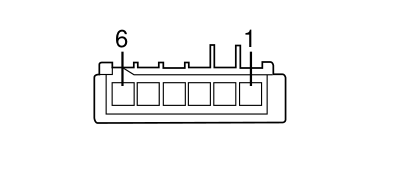

H5B

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		AB		M1D	7
2		HN		M1B	33
3		LG		M1D	4
5		AV		M1B	28
6		NZ		C15B	3

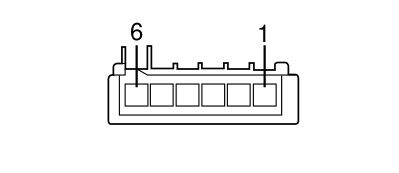

H5C

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		BH		E50A	8
2		AR		B2G	17
3		AN		B2G	11
4		HV		B2G	15
5		N		C15B	2
6		AH		M1B	30
