H37 Gear controls
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Manual electric controls › H37 Gear controls

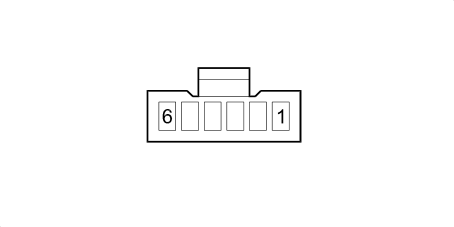

Connectors and pin-outsH37 Gear controls
H37 Gear controls
H37A
| Wiring | Colour |
|---|---|
| Connectors | BIANCO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | NZ | X | M54B | 65 |
| D1 | 7 | ||||
| 2 | GH | M54A | 26 | ||
| 3 | GN | M54B | 68 | ||
| 4 | BR | M54B | 67 | ||
| 5 | BV | M54B | 74 | ||
H37B
| Wiring | Colour |
|---|---|
| Connectors |
