D1 Front / dashboard coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Intermediate couplings › D1 Front / dashboard coupling

Connectors and pin-outsD1 Front / dashboard coupling

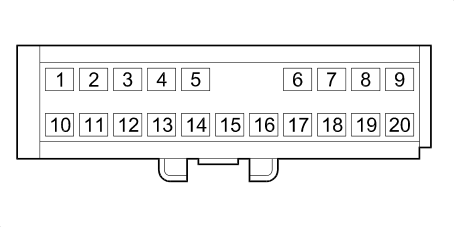

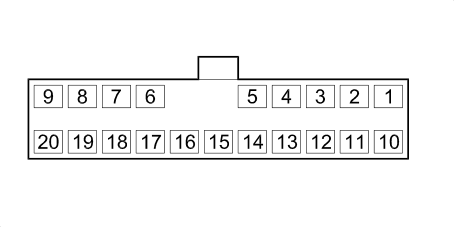

D1 Front / dashboard coupling

1.9 JTD 16V

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4
2		N		D4
3		GH		B1A	21
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

1.6 TS, 2.0 TS · up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4	6
2		N		D4	7
4		HV		M54B	77
7		NV	X	M54B	65
				H37	1
8		HR		M54B	75
9		NZ		M50	21
10		CA		M50	8
11		BO		M50	41
12		LC		M50	39
13		MZ		M50	9
14		AR		M50	10
15		M		D97B	2
16		V		D97B	5

1.6 TS, 2.0 TS · 03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4	6
2		N		D4	7
3		GH		B1A	21
4		HV		M54B	77
7		NV	X	M54B	65
				H37	1
8		HR		M54B	75
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

1.9 JTD 8V · up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4	6
2		N		D4	7
9		NZ		M50	21
10		CA		M50	8
11		BO		M50	41
12		LC		M50	39
13		MZ		M50	9
14		AR		M50	10
15		M		M1A	32
16		V		M1A	33

1.9 JTD 8V · 03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		D4	6
2		N		D4	7
3		GH		B1A	21
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

3.2 V6 · GTA

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		K29	1
3		GH		B1B	16
4		HV		M54B	77
7		NV	X	M54B	65
				H37	1
8		HR		M54B	75
9		LG		D97C	4
10		CA		M50	8
11		BO		M50	41
12		NZ		D97C	2
13		MZ		M50	9
14		AR		M50	10

up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		E50B	17
2		NV		E50B	18
4		HV		D43	8
7		NR		D47	7
8		HR		D47	8
9		NZ		D97C	1
10		CA		K74	5
11		BV		K74	4
12		LG		D97C	4
13		MZ		K74	2
14		AR		K74	1
15		M		K58	4
16		V		K58	3

03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		E50B	17
2		NV		E50B	18
3		GH		D47	6
4		HV		D43	8
7		NR		D47	7
8		HR		D47	8
9		LG		K74	3
10		CA		K74	5
11		BV		K74	4
12		NZ		K74	6
13		MZ		K74	2
14		AR		K74	1

3.2 V6 · GTA

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HM		E50B	17
3		GH		D47	6
4		HV		D43	8
7		NR		D47	7
8		HR		D47	8
9		LG		K74	3
10		CA		K74	5
11		BV		K74	4
12		NZ		K74	6
13		MZ		K74	2
14		AR		K74	1
