D97 Short circuiting coupling

Make: Alfa Romeo
Model: 147 Factory Service Manual
Year: 2000–2004
Section: Intermediate couplings › D97 Short circuiting coupling

‹ Prev D79 "Selespeed gearbox sensors coupling"Next › E47 "Selespeed gearbox buzzer"

Connectors and pin-outsD97 Short circuiting coupling

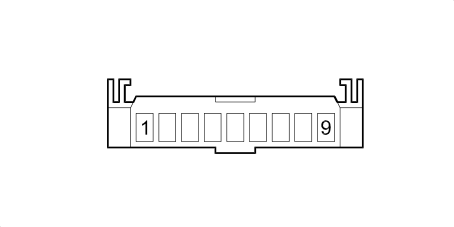

D97 Short circuiting coupling

D97A

1.9 JTD 8V, 1.9 JTD 16V

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32

1.6 TS, 2.0 TS, 3.2 V6

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32
3		CN		M54B	69
4		C		M10A	27
7		CL		M10A	26
8		CL		M50	20
9		CL		I30	3

1.6 TS, 2.0 TS · Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		CN		B2A	16
2		CN		M50	32
3		CN		M54B	69
4		C		M10A	27
7		CL		M10A	26
8		CL		M50	20
9		CL		D49	2

D97B

up to 03/01 · Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		M1A	32
2		M		D1	15
3		M		M54A	33
4		V		M1A	33
5		V		D1	16
6		V		M54A	45
7		LB		B2A	17
8		LB		D49	3
9		LB		H7	2

1.6 TS, 2.0 TS · up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		M		M1A	32
2		M		D1	15
3		M		M54A	33
4		V		M1A	33
5		V		D1	16
6		V		M54A	45
7		LB		B2A	17
8		LB		I30	1
9		LB		H7	2

1.9 JTD 8V · up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		LB		B2A	17
8		LB		I30	1
9		LB		H7	2

D97C – Front

03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · Right-hand drive

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		M50	21
2		NZ		D1	12
3		NZ		K58	6
4		LG		D1	9
5		LG		M50	39
6		LG		K58	5
7		LB		B2A	17
8		LB		D49	2
9		LB		H7	2

up to 03/01

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		D1	9
2		NZ		K74	6
3		NZ		K58	1
4		LG		D1	12
5		LG		K74	3
6		LG		K58	2

03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		M50	21
2		NZ		D1	12
3		NZ		K58	6
4		LG		D1	9
5		LG		M50	39
6		LG		K58	5
7		LB		B2A	17
8		LB		I30	1
9		LB		H7	2

D97D

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		M1C	18
2		GV		D43	1
3		GV		D75	8
4		LV		P20A	4
5		LV		B2H	3
6		LV		D43	7
7		NZ		P20C	12
8		NZ		D75	10
9		NZ		D47	2

D97E

04/01 to 06/02, up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		P31	1
2	1,5	AG		P48	1
3	1,5	AG		D68B	5
4	1,5	AR		P31	2
5	1,5	AR		P48	2
6	1,5	AR		D68B	6

D97F

04/01 to 06/02, up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	CN		P30	1
2	1,5	CN		P47	1
3	1,5	CN		D68B	3
4	1,5	CV		P30	2
5	1,5	CV		P47	2
6	1,5	CV		D68B	4

D97G

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	RV		M1E	33
2		RV		G20	1
3		RV		G31	2
4		RV		G32	2
5		RV		G40	2
6		RN		M1E	39
7	1	RN		K62	3
8		RZ		M82A	5
9	1	RN		D20	5

D97H

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		MN		D30	22
2		MN		D31	19
3		MN		B2D	31
4		MN		D6	1
5		MN		D6	2
7	1	A		B2D	4
8	1	AR		D70	1
9	1	AR		D71	1

D97I

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	HV		D36	2
2	1,5	HV		D35	2
3	1,5	HV		D31	7
4	1,5	HV		B2D	16
5	1,5	HV		D30	28
7		NS		B2D	28
8		NS		D30	18
9		NS		M82A	8

D97J

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	GV		D36	1
2	1,5	GV		D35	1
3	1,5	GV		D31	8
4	1,5	GV		B2D	18
5	1,5	GV		D30	29
7		BS		B2D	10
8		BS		D30	17
9		BS		M82A	9

D97K

04/01 to 06/02, up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	RN		D30	25
2	1,5	RN		P45	1
3	1,5	RN		P35	1
4	1,5	BN		D30	24
5	1,5	BN		P45	2
6	1,5	BN		P35	2

D97L

04/01 to 06/02, up to 03/01

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	NZ		D31	24
2	1,5	NZ		P46	2
3	1,5	NZ		P36	2
4	1,5	SN		D31	23
5	1,5	SN		P46	1
6	1,5	SN		P36	1
7		NV		P61	7
8		NZ		H50	1
9		NZ		D31	13

D97M – Front

Xenon headlamps

Wiring	Colour
12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HB		F10	7
2		S		M1A	35
3		SB		F11	7
4		N		F10	10
5		N		K1	1
6		N		D6B	3
7		BR		F10	9
8		BR		K1	5
9		BR		D6B	1
