D47 Clock spring coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Intermediate couplings › D47 Clock spring coupling

Connectors and pin-outsD47 Clock spring coupling

D47 Clock spring coupling

up to 03/01 · Selespeed gearbox, Steering wheel radio controls

Wiring	Colour

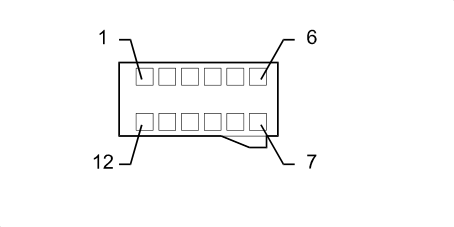

Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		NZ		D97D	9
3		SV		P20C	11
4		SZ		P20C	10
5		LN		B2H	12
7		NR		D1	7
8		HR		D1	8
11		MB		M60A	14
12		ZB		M60A	13

Steering wheel radio controls

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		C15A	8
2		NZ		D97D	9
3		SV		P20C	11
4		SZ		P20C	10
5		LN		B2H	12
6		GH		D1	3
7		NR		D1	7
8		HR		D1	8
11		MB		M60A	14
12		ZB		M60A	13

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · Steering wheel radio controls

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		C15A	8
2		NZ		D97D	9
3		SV		P20C	11
4		SZ		P20C	10
5		LN		B2H	12
6		GH		D1	3
7		NR		D1	7
8		HR		D1	8
11		MB		M60A	24
12		ZB		M60A	23

04/01 to 06/02, up to 03/01

Wiring	Colour

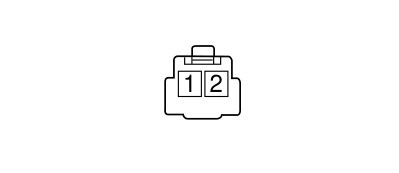

Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HB		M60A	14
2		CB		M60A	13

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		HB		M60A	24
2		CB		M60A	23
