P20 Radio

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Various consumers › P20 Radio

Connectors and pin-outsP20 Radio

P20 Radio

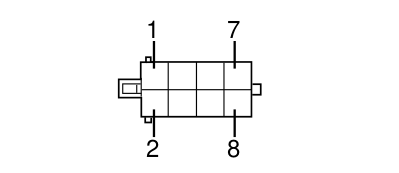

P20A

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NS		B2H	5
2		RN		D20	5
3		BS		B2H	17
4		LV		D97D	4
5		H		D20	6
7	1,5	RN		B2H	7
8	1,5	N		C15A	3

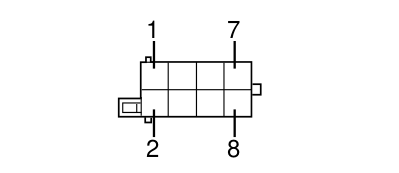

P20B

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		D41	5
2	1,5	AR		D41	6
3	1,5	SN		D41	7
4	1,5	NZ		D41	8
5	1,5	RN		D41	1
6	1,5	BN		D41	2
7	1,5	CN		D41	3
8	1,5	CV		D41	4

BOSE system, Navigator, Radio telephone

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		D68A	5
2	1,5	AR		D68A	6
3	1,5	SN		D68A	7
4	1,5	NZ		D68A	8
5	1,5	RN		D68A	1
6	1,5	BN		D68A	2
7	1,5	CN		D68A	3
8	1,5	CV		D68A	4

Navigator, Radio telephone, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		D41	5
2	1,5	AR		D41	6
3	1,5	RN		D41	7
4	1,5	BN		D41	8
5	1,5	SN		D41	1
6	1,5	NZ		D41	2
7	1,5	CN		D41	3
8	1,5	CV		D41	4

BOSE system, Navigator, Radio telephone, Right-hand drive

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	AG		D68A	5
2	1,5	AR		D68A	6
3	1,5	RN		D68A	7
4	1,5	BN		D68A	8
5	1,5	SN		D68A	1
6	1,5	NZ		D68A	2
7	1,5	CN		D68A	3
8	1,5	CV		D68A	4

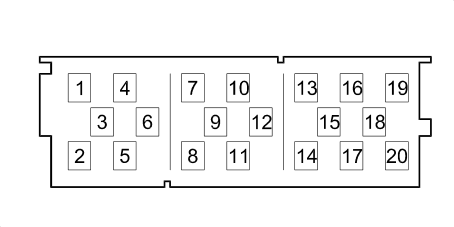

P20C

Wiring	Colour
Connectors	AZZURRO VERDE GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
7		BL		D75	4
8		BN		D75	3
9		BV		D75	1
10		SZ		D47	4
11		SV		D47	3
12		NZ		D97D	7

BOSE system, Navigator, Radio telephone

Wiring	Colour
Connectors	AZZURRO VERDE GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6	1	H		D68A	9
7		BL		D75	4
8		BN		D75	3
9		BV		D75	1
10		SZ		D47	4
11		SV		D47	3
12		NZ		D97D	7

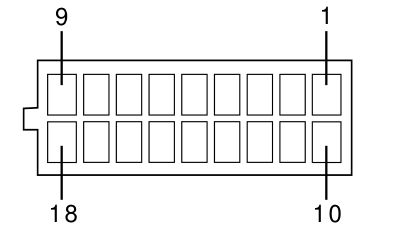

P20D

Navigator, Radio telephone

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
6	1	GR		P27	2
7		B		P27	5
8		R		P27	4
9		HV		D20	8
12		NZ		C15A	4
16		BL	X	P27	1
				P20D	17
17		AG		P27	1
				P20D	16
18		LG		D20	7

P20E

3.2 V6

Wiring	Colour
Connectors	AZZURRO VERDE GIALLO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
13	1	L		P75	10
14	1	B		P75	13
15	1	R		P75	3
16	1	V		P75	4
17	1	M		P75	2
18		SCH		P75	6
19	1	C		P75	12
20	1	G		P75	8
