Alfa Romeo 147 Factory Service Manual (2000-2004)21 · Connectors and pin-outs
21 · General

P75 CD / multi-player

Make
Alfa Romeo
Model
147 Factory Service Manual
Year
2000–2004
Section
Various consumers › P75 CD / multi-player
Connectors and pin-outsP75 CD / multi-player

P75 CD / multi-player

3.2 V6

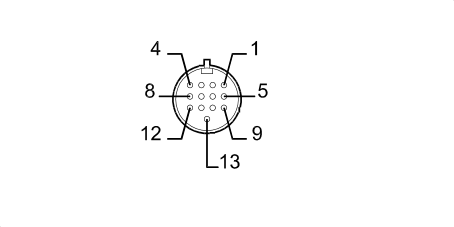

P75 CD / multi-player
WiringColour
Connectors
PinCableDestination
Sec.ColourNodeConnect.Pin
21MP20E17
31RP20E15
41VP20E16
6SCHP20E18
81GP20E20
101LP20E13
121CP20E19
131BP20E14
