P55 Heated rear windscreen
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Various consumers › P55 Heated rear windscreen
Connectors and pin-outsP55 Heated rear windscreen
P55 Heated rear windscreen

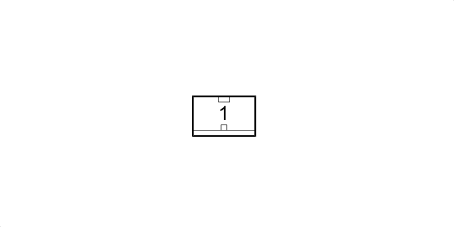

P55A
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2,5 | N | C32 | ||
P55B
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | M | B2D | 15 | |
