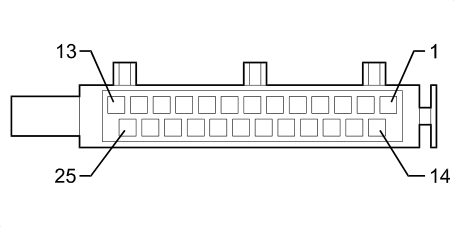

Connectors and pin-outs P70 Bose radio amplifier
P70 Bose radio amplifier
04/01 to 06/02, up to 03/01 · BOSE system, Right-hand drive
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 HG P49 3 2 1,5 BL P49 4 3 NZ D68A 2 4 BN D68A 8 5 CB D68A 4 6 AR D68A 6 7 AG D68A 5 8 CN D68A 3 9 RN D68A 7 10 SN D68A 1 11 2,5 NZ C65 P70 24 12 2,5 R D68C 1 13 2,5 RG D68C 2 14 1,5 HV P49 1 15 1,5 HL P49 2 16 1,5 NZ D68B 2 17 1,5 SN D68B 1 18 1,5 RN D68B 7 19 1,5 BN D68B 8 20 1,5 CN D68B 3 21 1,5 CV D68B 4 22 1,5 AG D68B 5 23 1,5 AR D68B 6 24 2,5 NZ C65 P70 11 25 H D68A 9
03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04 · BOSE system, Right-hand drive
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 HG P49 3 2 1,5 BL P49 4 3 NZ D68A 2 4 BN D68A 8 5 CB D68A 4 6 AR D68A 6 7 AG D68A 5 8 CN D68A 3 9 RN D68A 7 10 SN D68A 1 11 2,5 NZ C65 12 2,5 R D68C 1 13 2,5 RG D68C 2 14 1,5 HV P49 1 15 1,5 HL P49 2 16 1,5 NZ D68B 2 17 1,5 SN D68B 1 18 1,5 RN D68B 7 19 1,5 BN D68B 8 20 1,5 CN D68B 3 21 1,5 CV D68B 4 22 1,5 AG D68B 5 23 1,5 AR D68B 6 24 2,5 NZ C65 25 H D68A 9
04/01 to 06/02, up to 03/01 · BOSE system
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 HG P49 3 2 1,5 BL P49 4 3 BN D68A 2 4 NZ D68A 8 5 CB D68A 4 6 AR D68A 6 7 AG D68A 5 8 CN D68A 3 9 SN D68A 7 10 RN D68A 1 11 2,5 NZ C65 P70 24 12 2,5 R D68C 1 13 2,5 RG D68C 2 14 1,5 HV P49 1 15 1,5 HL P49 2 16 1,5 BN D68B 2 17 1,5 RN D68B 1 18 1,5 SN D68B 7 19 1,5 NZ D68B 8 20 1,5 CN D68B 3 21 1,5 CV D68B 4 22 1,5 AG D68B 5 23 1,5 AR D68B 6 24 2,5 NZ C65 P70 11 25 H D68A 9
03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04 · BOSE system
Pin Cable Destination Sec. Colour Node Connect. Pin 1 1,5 HG P49 3 2 1,5 BL P49 4 3 BN D68A 2 4 NZ D68A 8 5 CB D68A 4 6 AR D68A 6 7 AG D68A 5 8 CN D68A 3 9 SN D68A 7 10 RN D68A 1 11 2,5 NZ C65 12 2,5 R D68C 1 13 2,5 RG D68C 2 14 1,5 HV P49 1 15 1,5 HL P49 2 16 1,5 BN D68B 2 17 1,5 RN D68B 1 18 1,5 SN D68B 7 19 1,5 NZ D68B 8 20 1,5 CN D68B 3 21 1,5 CV D68B 4 22 1,5 AG D68B 5 23 1,5 AR D68B 6 24 2,5 NZ C65 25 H D68A 9

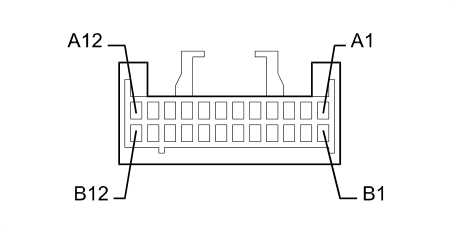

P70A – Cd multi
from 02/04 · 3-door, BOSE system
from 02/04 · 3-door, BOSE system, Right-hand drive
from 02/04 · 5-door, BOSE system
from 02/04 · 5-door, BOSE system, Right-hand drive

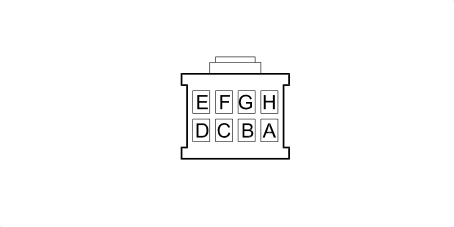

P70B – Cd multi
from 02/04 · BOSE system
Pin Cable Destination Sec. Colour Node Connect. Pin A NZ C65 B 1 HL P49 2 C 1 BL P49 4 F 1 HG P49 3 G 1 HV P49 1 H R D68C 1
