C15 Facia earth, driver's side

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Earths › C15 Facia earth, driver's side

Connectors and pin-outsC15 Facia earth, driver's side

C15 Facia earth, driver's side

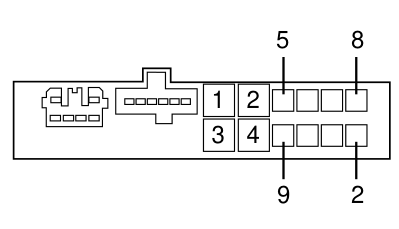

C15A

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		B2H	10
2	1,5	NV		D43	3
3	1,5	N		P20A	8
4		NZ		P20D	12
5		N		I15B
6	2,5	NV		M1C	10
7		NZ		D43	6
8		N		D47	1

C15B

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		NZ		M1D	8
2		N		H5C	5
3		NZ		H5B	6
4		NZ		H12A	2

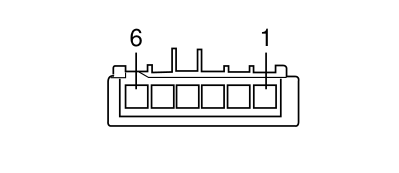

C15C

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		G10	1
2		NZ		G31	1
3		NZ		G32	1
4		NZ		K85	2
5	1,5	NL		D30	13
6	1,5	NL		D30	31
