Connectors and pin-outsC11 Right front earth

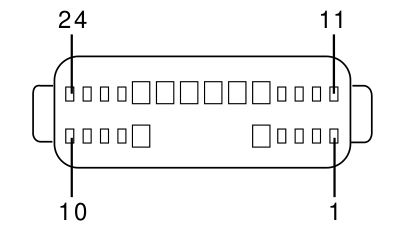

C11 Right front earth
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 2 | 1 | N | P11B | 1 | |
| 3 | 1 | N | P10B | 1 | |
| 4 | NZ | K10 | 6 | ||
| 5 | NZ | N25 | 2 | ||
| 6 | N | F11 | 1 | ||
| 9 | NZ | I10 | 2 | ||
| 10 | NZ | D51 | 4 | ||
| 13 | NZ | D51 | 2 | ||
| 14 | NZ | F11 | 2 | ||
| Wiring | Colour |
|---|---|
| Connectors | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | N | D79 | 9 | ||
| 2 | 1 | N | P11B | 1 | |
| 3 | 1 | N | P10B | 1 | |
| 4 | NZ | K10 | 6 | ||
| 5 | NZ | N25 | 2 | ||
| 6 | N | F11 | 1 | ||
| 7 | NZ | J87 | 2 | ||
| Wiring | Colour |
|---|---|
| Connectors | NERO |
