C38 Earth on centre tunnel

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Earths › C38 Earth on centre tunnel

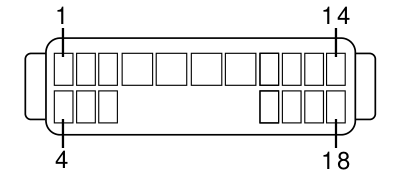

Connectors and pin-outsC38 Earth on centre tunnel

C38 Earth on centre tunnel

3-door

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		N		F31	1
2		NZ		D30	5
3		NZ		D31	25
4		NZ		D31	13
5		NZ		I45	2
6		NZ		K62	1
7		N		D45	1
8	1	NV		D70	3
9	2	NV		I50	1
10	1	NV		D71	3
11		NZ		K3	1
12		NZ		D31	2

5-door

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		NZ		D30	5
3		NZ		D31	25
4		NZ		D31	13
5		NZ		I45	2
6		NZ		K62	1
7		N		D45	1
8	1	NV		D70	3
9	2	NV		I50	1
10	1	NV		D71	3
11		NZ		K3	1
12		NZ		D31	2
