D43 Dashboard/centre console coupling

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Intermediate couplings › D43 Dashboard/centre console coupling

Connectors and pin-outsD43 Dashboard/centre console coupling

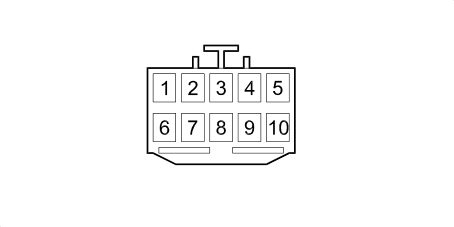

D43 Dashboard/centre console coupling

Wiring	Colour
78 CENTRE CONSOLE BRIDGE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		P50	1
2	1,5	RB		P50	2
3	1,5	NV		P50	3
4		NS		H35	7
5		CB		H35	5
6		NZ		H35	3
7		LV		H35	1
8		HV		H35	4

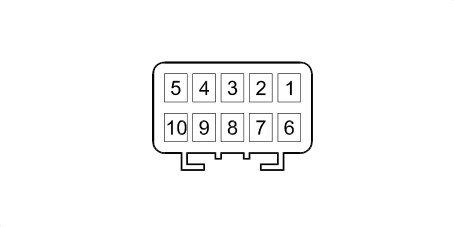

Wiring	Colour
Connectors	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		GV		D97D	2
2	1,5	RB		B2H	9
3	1,5	NV		C15A	2
4		MV		B2H	15
5		CB		B2H	16
6		NZ		C15A	7
7		LV		D97D	6
8		HV		D1	4
