I30 Brake pedal switch

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Switches › I30 Brake pedal switch

Connectors and pin-outsI30 Brake pedal switch

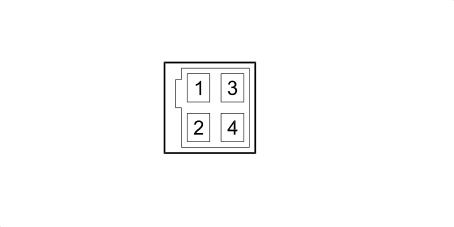

I30 Brake pedal switch

up to 03/01

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LB		D97B	8
2		C		B2A	14
3		CL		D97A	9
4		CN		B2A	15

03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04

Wiring	Colour
Connectors	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		LB		D97C	8
2		C		B2A	14
3		CL		D97A	9
4		CN		B2A	15

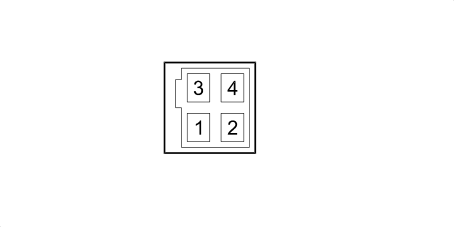

Right-hand drive

Wiring	Colour
56 PEDAL ASSEMBLY BRIDGE	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1		C		D49	5
2		CN		D49	4
3		LB		D49	3
4		CL		D49	2
