A10 Alternator
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Starting - recharging › A10 Alternator
Connectors and pin-outsA10 Alternator
A10 Alternator

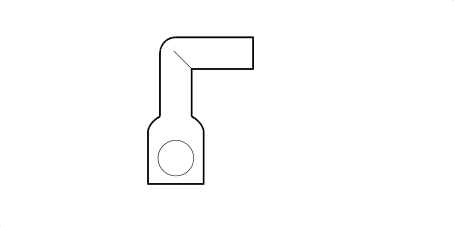

A10A – Engine
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | H | D4 | 8 | ||
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| HN | D4 | 8 | |||
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| HN | D4 | H | |||
| Wiring | Colour |
|---|---|
| 50 ENGINE |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | HG | D7 | 3 | ||
A10B
| Wiring | Colour |
|---|---|
| Connectors |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 16 | R | A20A | |||
