Manual gearbox and differential assembly

Description 2110A

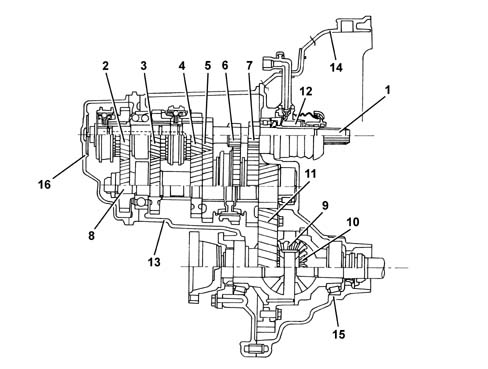

1.6 TS

CONSTRUCTION FEATURES

The structure of the gearbox casing consists of: a casing which contains and supports the main and layshafts, rods and gear selector forks and the gear selector and engagement device.

1 - Main shaft

2 - 5th speed drive gear

3 - 4th speed drive gear

4 - 3rd speed drive gear

5 - 2nd speed drive gear

6 - 1st speed drive gear

7 - Reverse speed drive gear

8 - Layshaft

9 - Satellite gears

10 - Planet gears

11 - Ring gear

12 - Clutch coaxial control device

13 - Gear casing

14 - Clutch casing

15 - Differential mount casing

16 - Gear casing cover

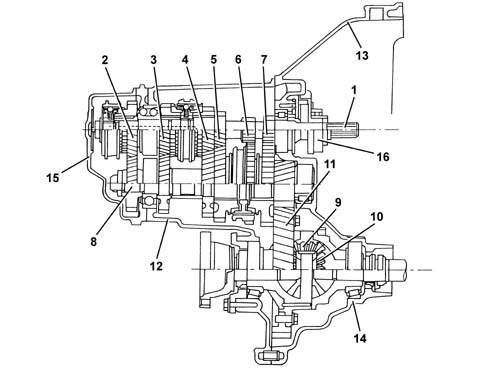

2.0 TS · Selespeed gearbox

CONSTRUCTION FEATURES

The structure of the gearbox consists of: a gearbox casing which contains and supports the main and layshafts, rods and gear selector forks and the gear selector and engagement device.

1 - Main shaft

2 - 5th speed drive gear

3 - 4th speed drive gear

4 - 3rd speed drive gear

5 - 2nd speed drive gear

6 - 1st speed drive gear

7 - Reverse speed drive gear

8 - Layshaft

9 - Satellite gears

10 - Planet gears

11 - Ring gear

12 - Gearbox casing

13 - Clutch casing

14 - Differential support housing

15 - Gear casing cover

16 - Thrust bearing
