Manual gearbox differential

Description 2110D

1.6 TS

CONSTRUCTION FEATURES

The differential consists of:

• a crown wheel and pinion reduction
• a differential housing constructed in a single piece which includes the differential and planet gears.

The differential housing is supported by two conical bearings and the ring gear is fixed by bolts.

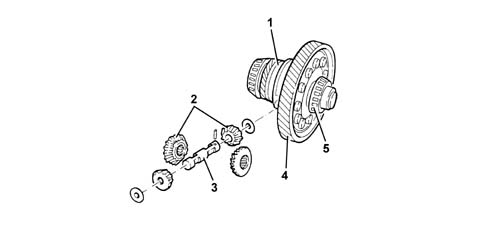

1 - Manual gearbox internal differential housing

2 - Manual gearbox differential planet-satellite gears

3 - Manual gearbox differential satellite carrier Manual gearbox differential thrust washers

4 - Manual gearbox differential ring gear

5 - Manual gearbox differential internal shafts bearing

2.0 TS · Selespeed gearbox

CONSTRUCTION FEATURES

The differential consists of:

• a crown wheel and pinion reduction
• a differential housing constructed in a single piece which includes the differential and planet gears.

The differential housing is supported by two conical bearings and the ring gear is fixed by bolts.

1 - Manual gearbox differential internal housing

2 - Manual gearbox differential planet/satellite gears

3 - Manual gearbox differential satellite carrier Manual gearbox differential thrust washers

4 - Manual gearbox differential ring gear

5 - Manual gearbox differential internal shaft bearing

3.2 V6

COMPONENT DESCRIPTION

DIFFERENTIAL

Composition

Structure

The differential consists of:

• a crown wheel and pinion reduction;
• a differential housing made from two half casings which include the planet and satellite gears.

The differential housing is supported by two conical bearings and the ring gear is fixed by bolts.

The drive gear for the speedometer is fitted on the outside of the differential housing.

1.9 JTD 8V, 1.9 JTD 16V

COMPONENT DESCRIPTION

DIFFERENTIAL

Composition

Structure

The differential consists of:

• a crown wheel and pinion reduction;
• a differential housing made from two half casings which include the planet and satellite gears.

The differential housing is supported by two conical bearings and the ring gear is fixed by bolts.

The drive gear for the speedometer is fitted on the outside of the differential housing.
