SUPPLY - Wiring diagram

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Power supply and earths › SUPPLY - Wiring diagram

Wiring diagrams and electrical functionsSUPPLY - Wiring diagram

SUPPLY - Wiring diagram

1.6 TS, 2.0 TS

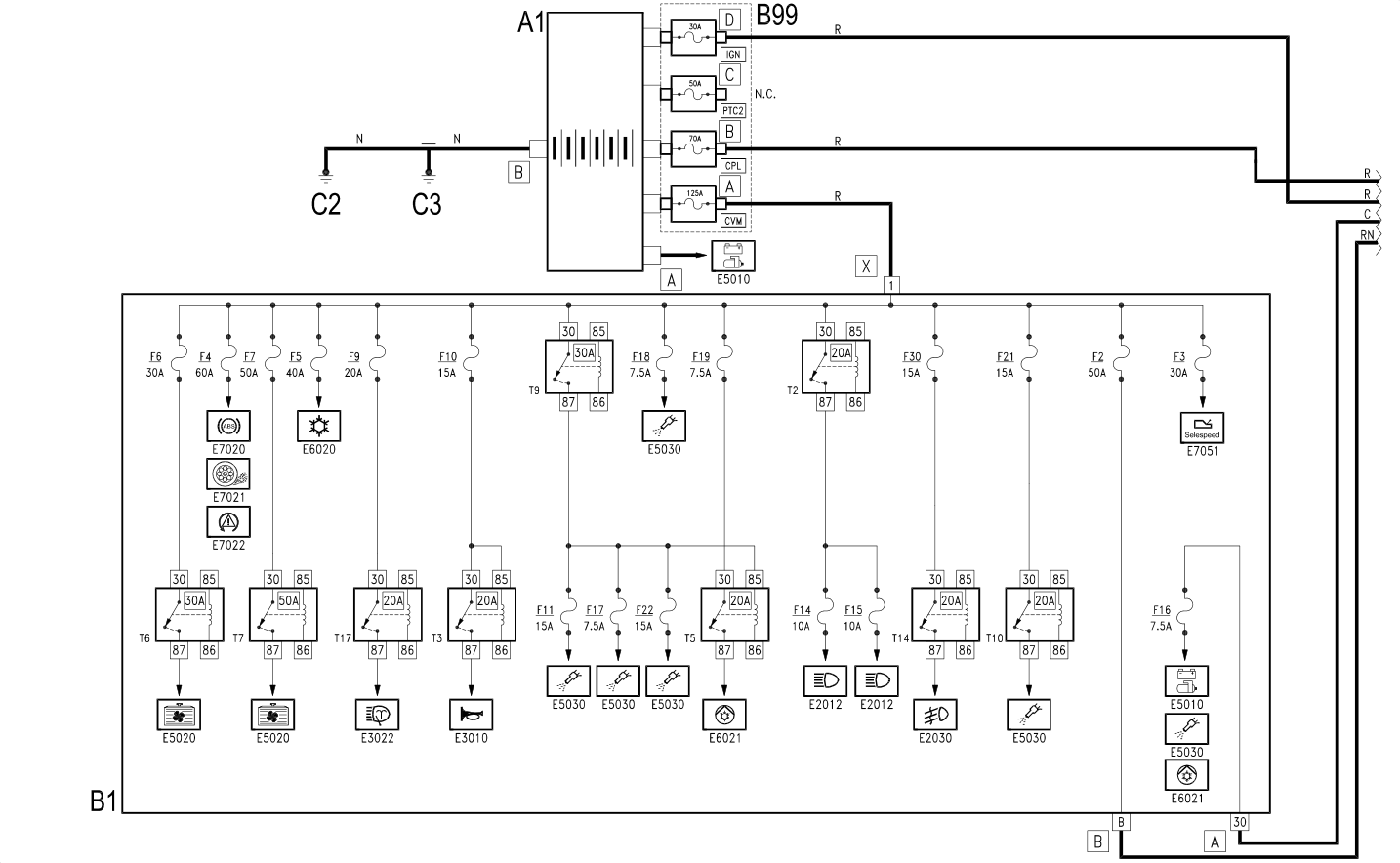

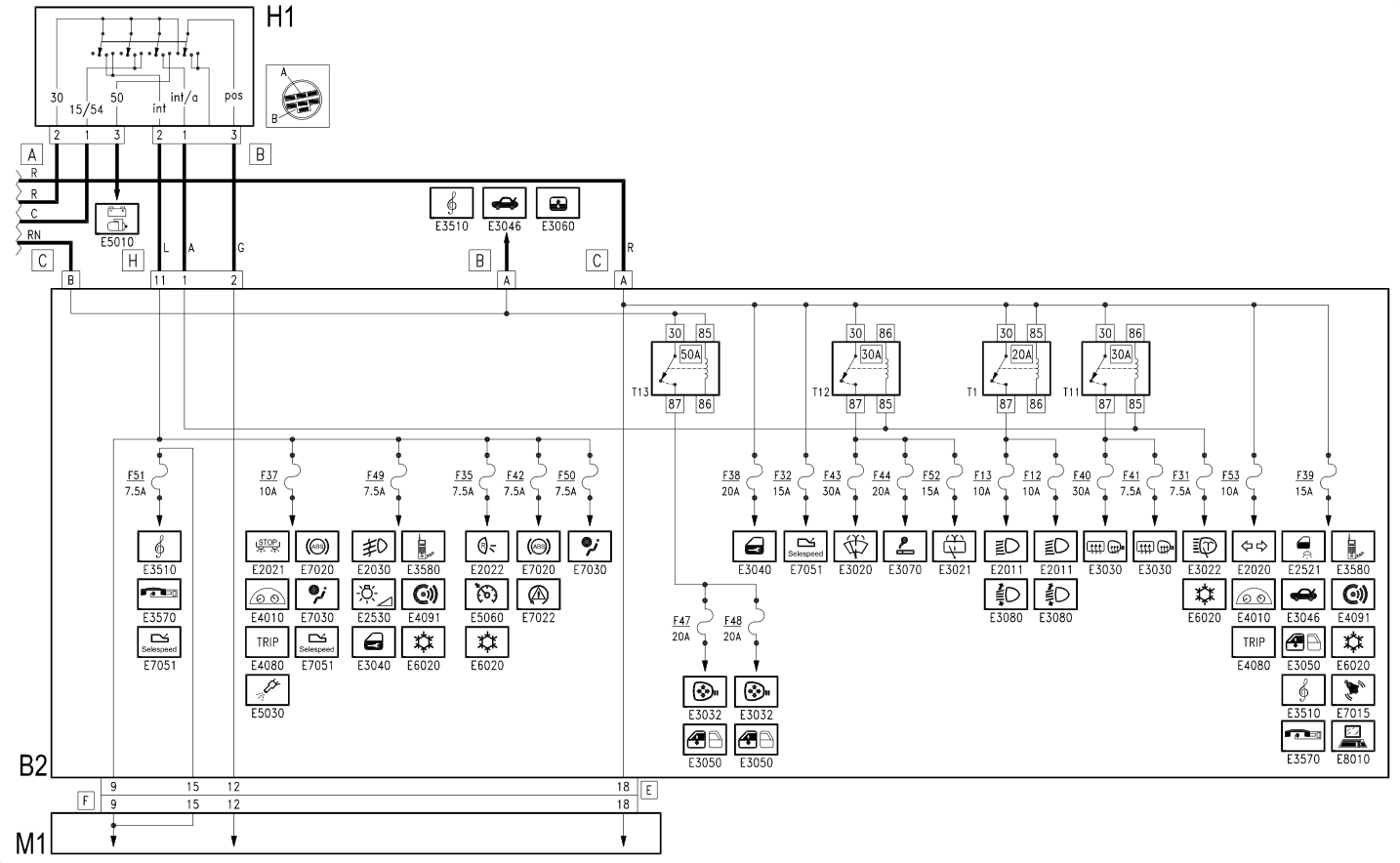

Wiring diagram

Components

Component code	Name	Assembly reference
A1	Battery	5530B
B1	Engine compartment junction unit
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C2	Battery earth on engine
C3	Battery earth on bodyshell
H1	Ignition switch	5520A

1.9 JTD 8V, 1.9 JTD 16V

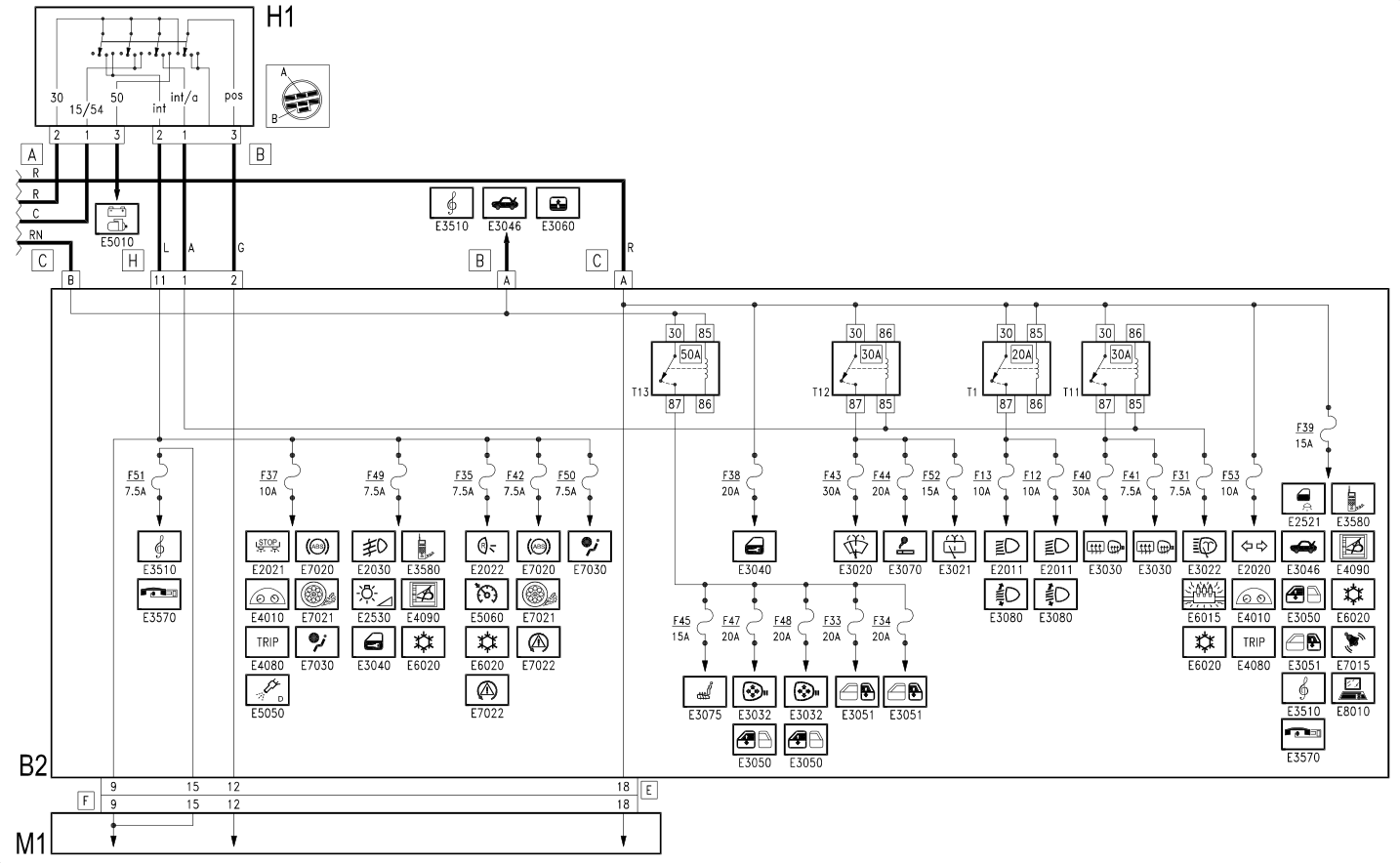

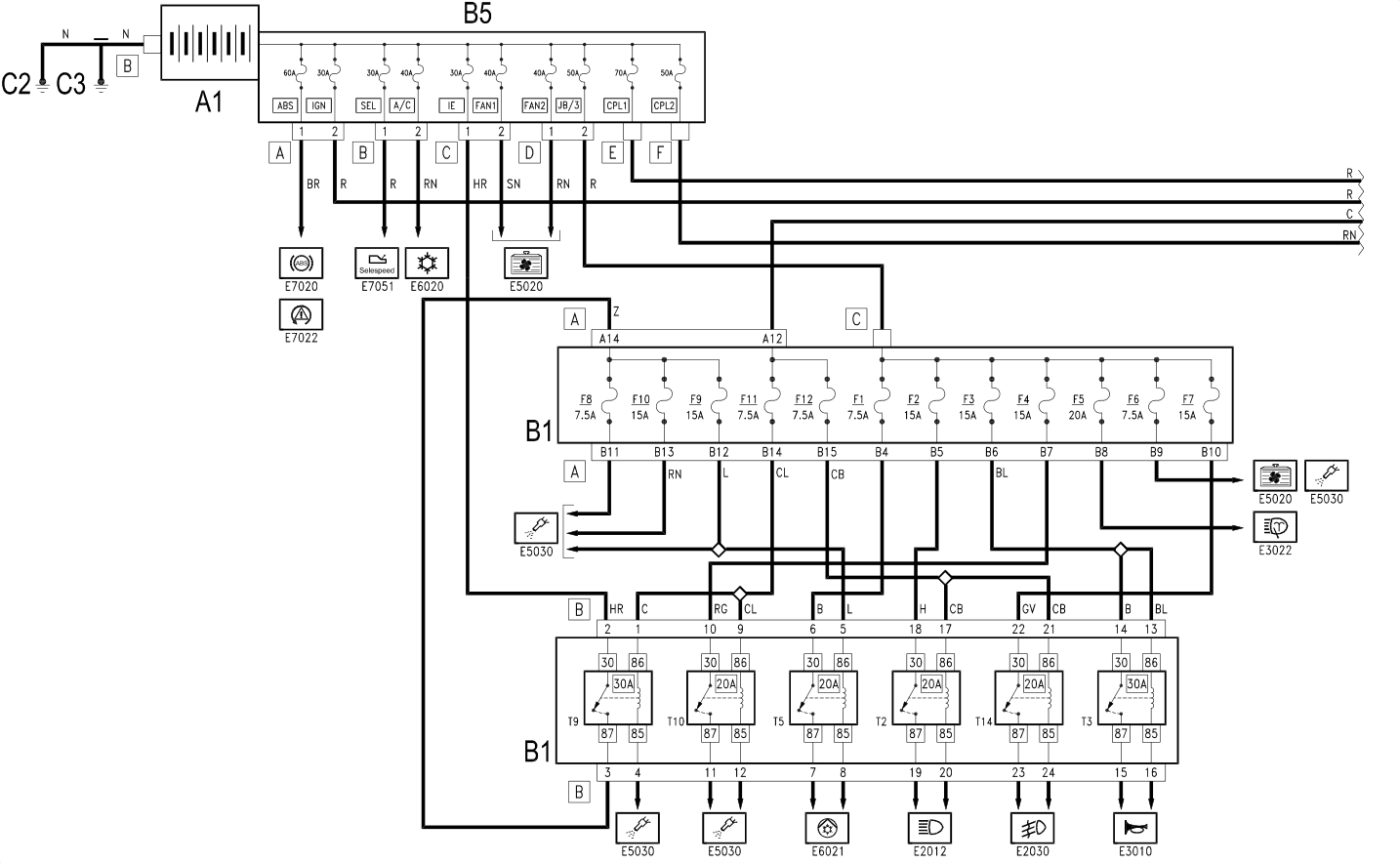

Wiring diagram

Components

Component code	Name	Assembly reference
A1	Battery	5530B
B1	Engine compartment junction unit
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C2	Battery earth on engine
C3	Battery earth on bodyshell
H1	Ignition switch	5520A

3.2 V6 · GTA

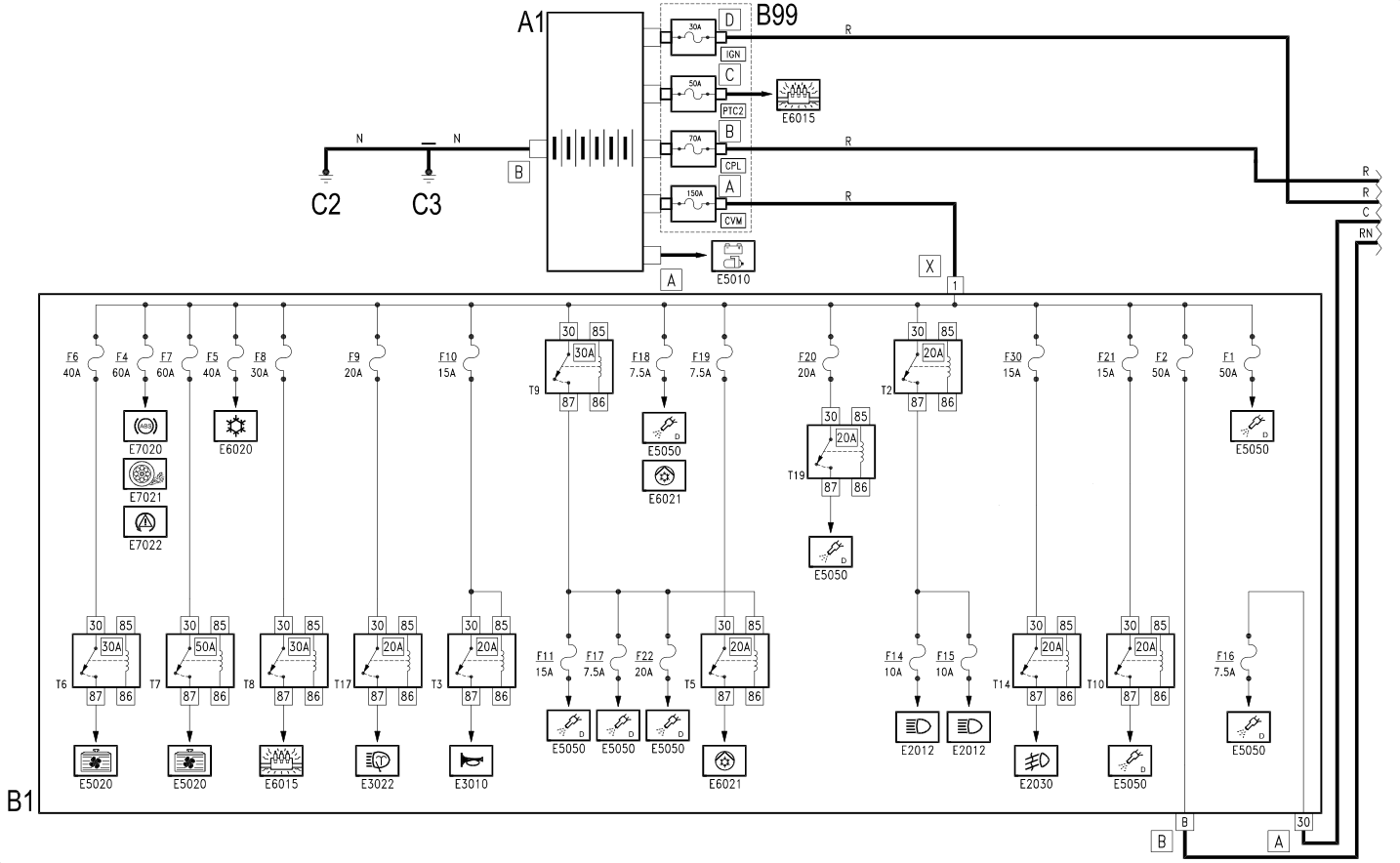

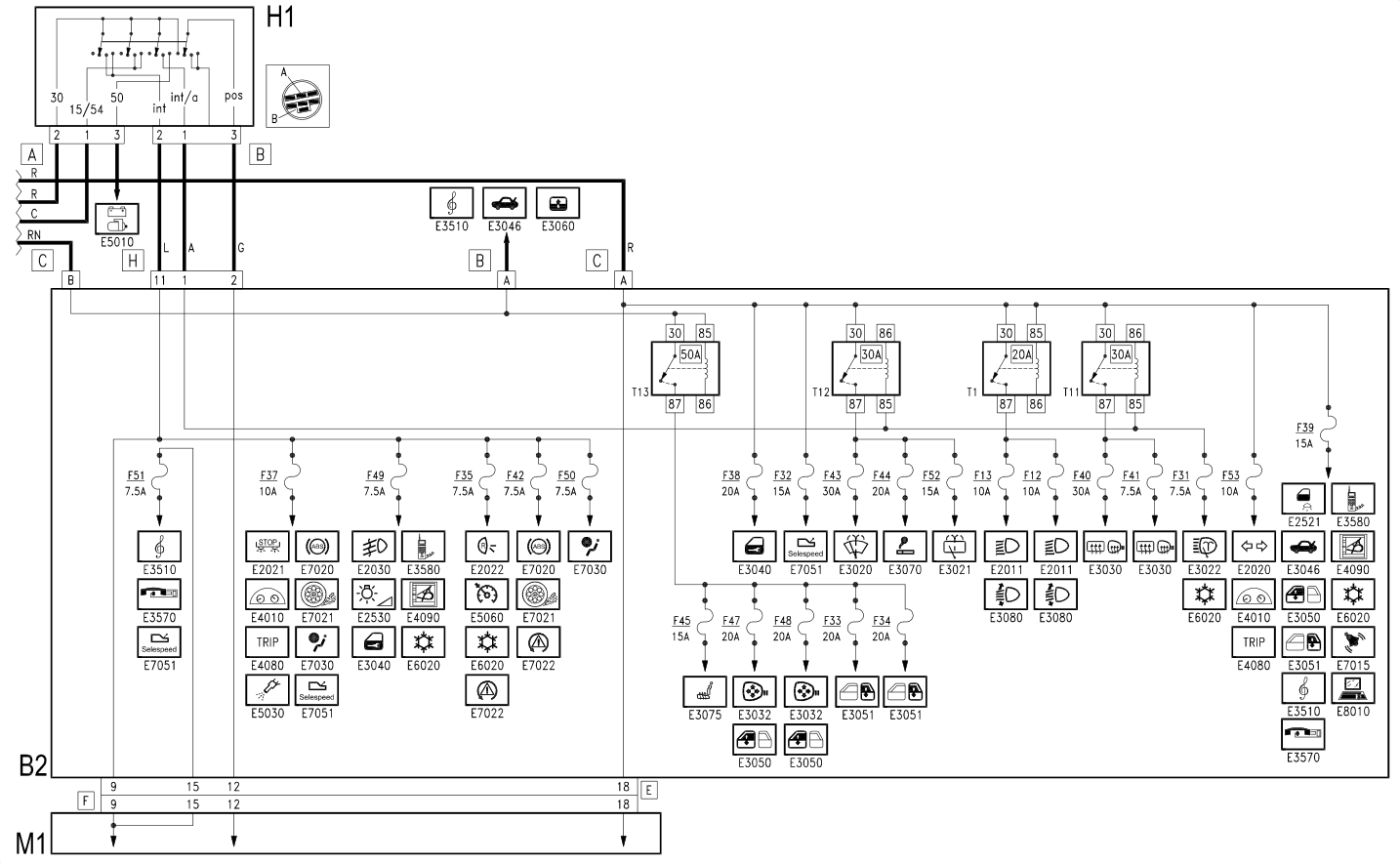

Wiring diagram

Components

Component code	Name	Assembly reference
A1	Battery	5530B
B1	Engine compartment junction unit
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C2	Battery earth on engine
C3	Battery earth on bodyshell
H1	Ignition switch	5520A
