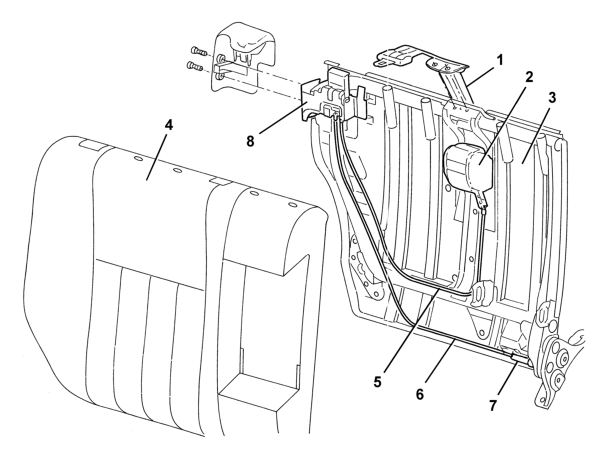

REAR CENTRAL SEAT BELT REEL

• 1 Central rear seat belt
• 2 Reel
• 3 Right rear seat squab structure
• 4 Right rear seat trim and padding
• 5 Bowden cable controlling reel during squab release
• 6 Bowden cable controlling locking pin
• 7 Squab lock pin
• 8 Squab release device

The rear central seat belt reel is located inside the squab anchored to the squab structure. To ensure effective operation in safe conditions, the reel is connected via a bowden cable to the squab catch release lever. The belt is free to slide and

allow fastening only when the lever is properly closed.

View of assembly
