Central rear seat belt r r

Operation 7065B18 · Rear safety belts

Removal

See Op. 7040B10 Load platform (luggage platform) trim - r+r

See Op. 7050A18 Rear seat squab - r+r (right side).

See Op. 7050B10 L/h or r/h head restraint (one) of rear seat - r+r

See Op. 7050B30 Rear seat central armest r r (right side).

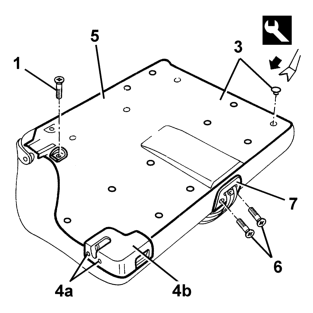

1 Undo the bolt fixing the mounting ring.

2 Remove the mounting ring.

3 Release the retaining buttons using the special tool.

Special tool 1.823.015.000 – Blade 3

4 Undo the bolts 4a and remove the protection 4b, then do up bolts 4a.

5 Remove the squab protection.

6 Unscrew the bolts

7 Remove the belt slide by releasing the inner retainer using the special tool.

Special tool 1.823.015.000 – Blade 7

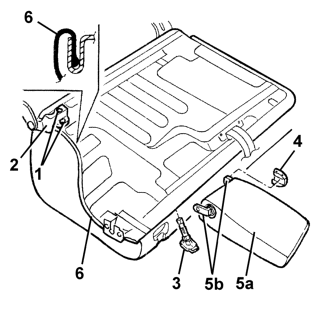

1 Unscrew the bolts

2 Remove the seat anchor bracket.

3 Remove the head restraint tubes.

4 Remove the armrest embellishment.

5 Remove the armrest 5a, disengaging it from the retainers 5b.

6 Remove the cover along the entire perimeter of the seat.

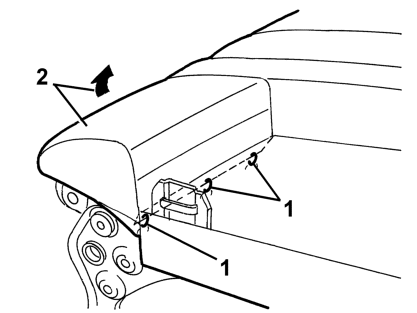

1 Using cutters, cut the hooks securing the trim to the frame.

2 Remove the cover from the padding.

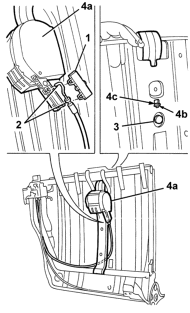

1 Fold down the squab frame and take off the cover.

2 Disconnect the belt release control cable from the retainers.

3 Unscrew the reel retaining bolt.

4 Remove the reel with seat belt 4a after disconnecting retainer 4b from the seat on frame 4c.

Refitting

Check that the winder and seat belt are not damaged.

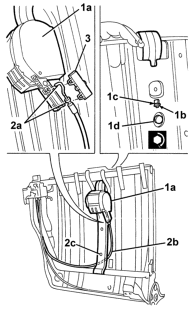

1 Fit the reel with seat belt 1a in its seat and engage retainer 1b with the seat on frame 1c. Then secure with bolt 1d.

Screw 7/16" – Seat belt reel centre rear 1: 4.0 daNm

2 Connect the belt release control cable retainers 2a.

NOTE: ensure that cable 2b is positioned beneath bracket 2c as shown in the figure.

3 Fit the cover.

Fit the trim with padding and clench the hooks securing the trim to the frame.

Fit the cover along the whole perimeter.

Fit the armrest on the retainers.

Fit the armrest panel.

Fit the head restraint tubes.

Fit the seat anchorage bracket and fix it with the bolts.

Fit the belt slide and engage the inner retainer. Then secure with bolts.

Position the squab protection and fix it with the retaining buttons.

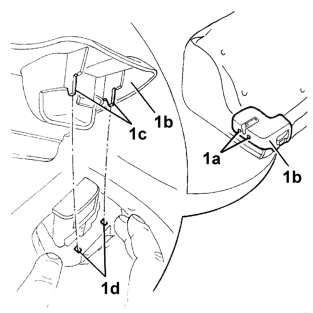

1 Undo the side bolts 1a of the lock, position the protection 1b then retighten the bolts.

1 Make sure that the retainers 1c of the protection 1b fit correctly in their seatings 1d in the engagement assembly.

Position the mounting ring and fix it using the bolt.

See Op. 7050B30 Rear seat central armest r r (right side).

See Op. 7050B10 L/h or r/h head restraint (one) of rear seat - r+r

See Op. 7050A18 Rear seat squab - r+r (right side).

See Op. 7040B10 Load platform (luggage platform) trim - r+r
