BodyRear view mirror - r+r
Rear view mirror - r+r
Removal

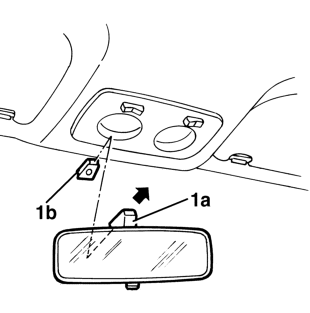

1 Raise mirror mount 1a by lifting out of retaining block 1b secured to the glass.
Refitting
Check that the door mirror is not damaged.
Engage the rear view mirror mount on the retainer block secured to the window.
Check that the rear view mirror moves smoothly.
