BodyRear seat central armest r r

Rear seat central armest r r

Operation 7050B30 · Rear seat head restraint/arm rest

Removal

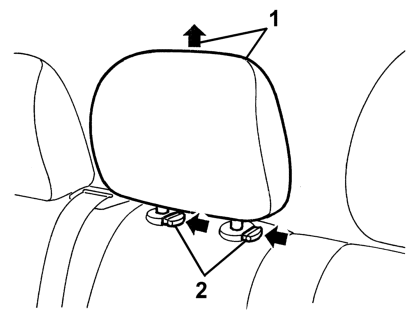

1 Raise the head restraint to the limit of its travel.

2 Press the retainers and withdraw the head restraint.

Refitting

Check that the head restraint is undamaged.

Refit the head restraint fully home in its seating.

Press the retainers and insert the head restraint.
