Split rear seat assembly - r+r

Operation 7050A14 · Rear seat assembly

Removal

See Op. 7050A22 Rear seat cushion - r+r (left and right sides)

See Op. 7040B10 Load platform (luggage platform) trim - r+r

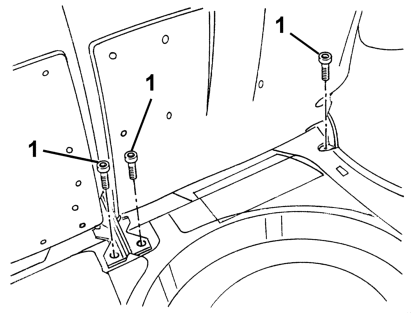

1 Undo the bolts securing the squab to the floor.

NOTE: Use hexagonal splined wrench N. 7 (USAG 233 S or equivalent).

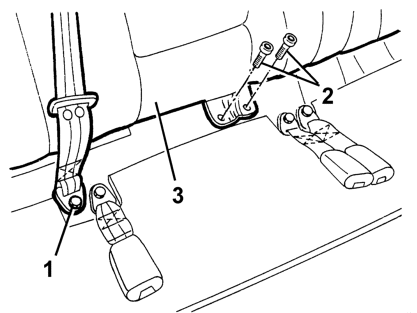

1 Undo the bolt and remove the end of the seat belt.

2 Undo the bolts securing the squabs to the floor.

NOTE: Use hexagonal splined wrench N. 7 (USAG 233 S or equivalent).

3 Remove the squabs.

Refitting

Check that the squabs are not damaged.

Position the squabs.

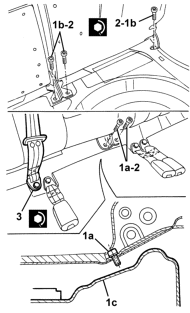

1 Do up the side bolts (1a and 1b) securing the squabs to the floor.

NOTE: Front bolts 1a must be as specified by the manufacturer because longer bolts could interfere with the fuel tank 1c.

2 Tighten the bolts securing the squabs to the floor.

Screw M10 – Rear seat squab joints 2: 3.5 daNm

3 Position the end of the centre seat belt and tighten the bolt.

Bolt M7/16'' – Rear seat belt end. 3: 4.0 daNm

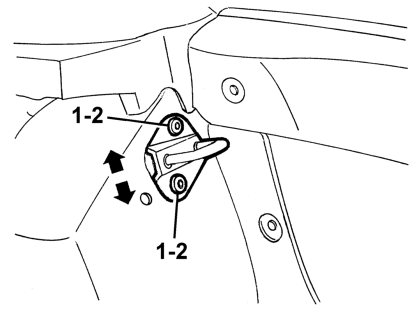

1 Loosen then do up the catch striker screws so that the strikers can move. Permitted adjustment movements are indicated by arrows.

Engage the squabs while allowing the strikers to centre on the locks.

Disengage and lower the squabs.

2 Tighten the striker screws.

Check that the squabs are engaged correctly.

Check that the central rear seat belt is working properly.
