Rear seat squab trim - r+r with seat removed

Operation 7050A26 · Rear seat assembly

Removal

See Op. 7050B10 L/h or r/h head restraint (one) of rear seat - r+r

See Op. 7050B30 Rear seat central armest r r (only for the right side)

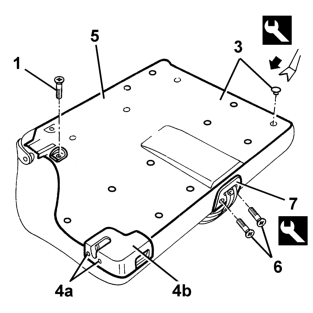

1 Undo the bolt fixing the mounting ring.

2 Remove the mounting ring.

3 Release the retaining buttons using the special tool.

Special tool 1.823.015.000 – Blade 3

4 Undo the bolts 4a and remove the protection 4b, then retighten bolts 4a.

5 Remove the squab protection.

6 Unscrew the bolts

7 Remove the belt slide by undoing the inner retainer with the appropriate tool.

Special tool 1.823.015.000 – Blade 7

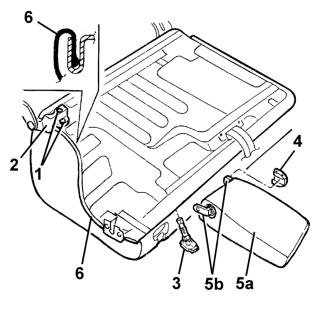

1 Unscrew the bolts

2 Remove the seat anchor bracket.

3 Remove the head restraint tubes.

4 Remove the armrest embellishment.

5 Remove the armrest 5a, disengaging it from the retainers 5b.

6 Remove the cover along the entire perimeter of the seat.

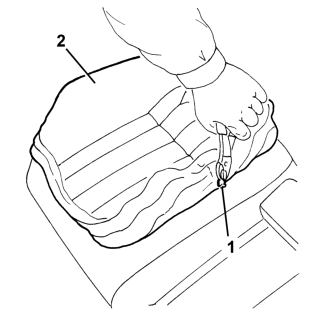

1 Cut the hooks securing the trim to the frame using cutters.

2 Remove the cover from the padding.

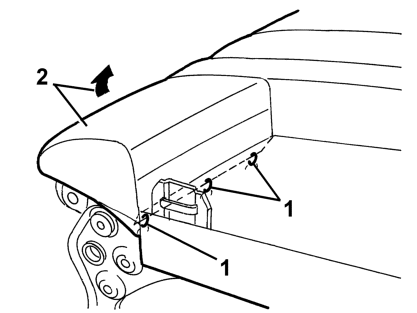

1 Working in the armrest compartment, use cutters to cut the top retaining hooks on the squab cover.

2 Remove the trim from the padding.

Refitting

Check that the trim is undamaged.

Fit the cover on the padding.

Hook on the top retaining hooks.

Fit the trim with padding and stake the hooks securing the trim to the frame in the armrest compartment.

Fit the cover along the whole perimeter.

Fit the armrest on the retainers.

Fit the armrest panel.

Fit the head restraint tubes.

Fit the seat anchorage bracket and fix it with the bolts.

Position the belt slide and do up the inner retainer. Then secure with bolts.

Position the squab protection and fix it with the retaining buttons.

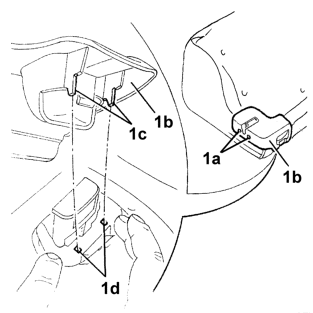

1 Undo the side bolts 1a of the lock, position the protection 1b then retighten the bolts.

1 NOTE: Make sure that the retainers 1c of the protection 1b fit correctly in their seatings 1d in the engagement assembly.

Position the mounting ring and secure with bolts.

See Op. 7050B30 Rear seat central armest r r (only for the right side)

See Op. 7050B10 L/h or r/h head restraint (one) of rear seat - r+r
