Rear seat cushion trim - r+r with seat removed

Operation 7050A30 · Rear seat assembly

Removal

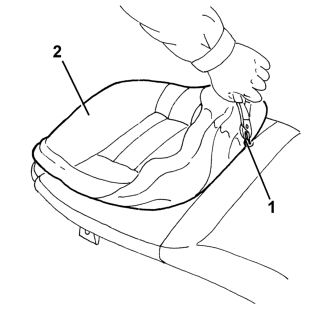

1 Remove the cover along the entire perimeter of the seat.

2 Remove the cover from the padding.

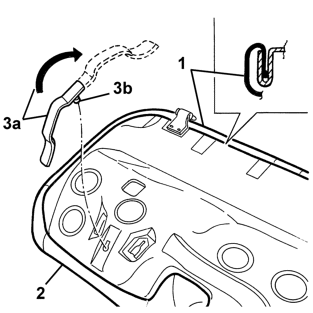

3 If necessary, turn handle 3a through 180 degrees and undo retainer 3b to remove.

1 Using cutters, cut the top retaining hooks on the cushion cover.

2 Remove the trim from the padding.

Refitting

Check that the trim is undamaged.

Fit the cover on the padding.

Hook on the top retaining hooks.

Position the cover with padding and fit it along the entire perimeter of the seat.

If the handle was removed, refit by reversing removal procedure.
