Sliding roof blind - r+r

Operation 7030B28 · Sliding roof

Removal

See Op. 7030B18 Sliding roof glass - r+r

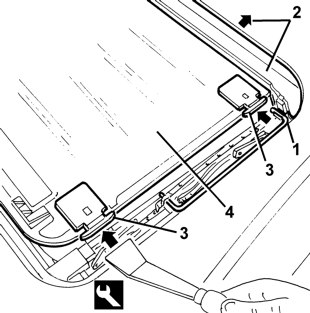

1 From both sides, disconnect the linkages.

2 Move the drainage channel backwards.

3 Using the special tool, press the curtain runners gently inwards and remove them from the guide.

Special tool 1.823.014.000 – Blade 3

4 Withdraw the curtain, releasing the runners on the opposite side.

Refitting

Check that the blind is not damaged.

Fit the curtain runners on one side, then using the special tool, then press the runners on the other side gently inwards and fit them in their seating.

Special tool 1.823.014.000 – Blade

Move the drainage channel forwards and connect the linkages.

See Op. 7030B18 Sliding roof glass - r+r

Check that the blind and the sun roof work properly.
