Drainage channel - r r

Operation 7030B40 · Sliding roof

Removal

See Op. 7040H30 Front pillar trim - r r (left and right sides)

See Op. 7040L40 Front compartment scuff strip - r r (left and right sides)

See Op. 7040A22 Instrument facia complementary trim element (one) - arrange (left and right sides)

See Op. 7040H50 Rear panel - r r (left and right sides)

See Op. 7040H38 Central pillar upper element - r r (left and right sides)

See Op. 7040G30 Boot light bulb holder - r r

See Op. 7040H42 Rear pillar trim - r r (left and right sides)

See Op. 7065C33 Sun blind with courtesy mirror and courtesy light one lh or rh r r (left and right sides)

See Op. 5580E22 Anti-theft device volumetric sensors - r+r following electrical wiring check

See Op. 7040E50 Front modular courtesy light unit - r+r

See Op. 7040E16 Rear courtesy light - r+r

See Op. 7030B34 Sliding roof compartment decorative seal - r+r

See Op. 7040H16 Roof panel lining - r r

See Op. 7030B10 Sliding roof (assembly) - r+r with roof panel removed

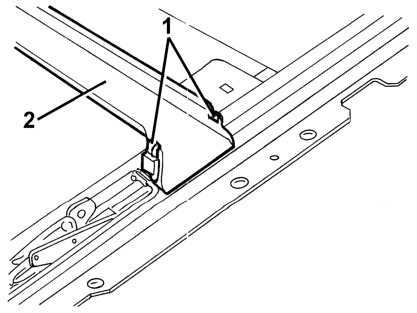

1 From both sides, release the channel retainers.

2 Recover the channel.

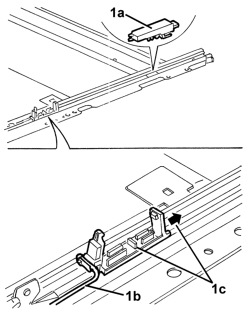

1 If necessary, remove the end-of-travel block 1a from its seating, then disengage the channel slide linkage 1b and withdrawn the channel runner 1c from the guide.

Refitting

Check that the channel is not damaged.

If removed, insert the channel runner in the guide, then engage the channel slide linkage and fit the end-of-travel block in its seating.

Fit the channel in position and engage the retainers on both sides.

See Op. 7030B10 Sliding roof (assembly) - r+r with roof panel removed

See Op. 7040H16 Roof panel lining - r r

See Op. 7030B34 Sliding roof compartment decorative seal - r+r

See Op. 7040E16 Rear courtesy light - r+r

See Op. 7040E50 Front modular courtesy light unit - r+r

See Op. 5580E22 Anti-theft device volumetric sensors - r+r following electrical wiring check

See Op. 7065C33 Sun blind with courtesy mirror and courtesy light one lh or rh r r (left and right sides)

See Op. 7040H42 Rear pillar trim - r r (left and right sides)

See Op. 7040G30 Boot light bulb holder - r r

See Op. 7040H38 Central pillar upper element - r r (left and right sides)

See Op. 7040H50 Rear panel - r r (left and right sides)

See Op. 7040A22 Instrument facia complementary trim element (one) - arrange (left and right sides)

See Op. 7040L40 Front compartment scuff strip - r r (left and right sides)

See Op. 7040H30 Front pillar trim - r r (left and right sides)
