Rear pillar trim - r r

Operation 7040H42 · Roof panel lining

Removal

Remove the rear parcel shelf.

See Op. 7040L40 Front compartment scuff strip - r r

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040H50 Rear panel - r r

See Op. 7040G30 Boot light bulb holder - r r (right trim only)

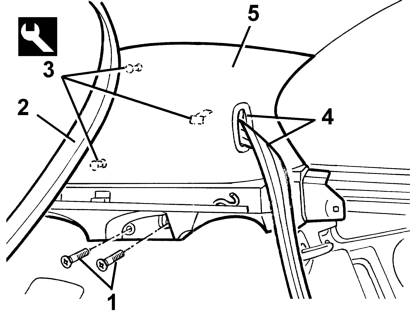

1 Unscrew the bolts.

2 Remove the tailgate seal near the pillar trim.

3 Remove the pillar trim inner retainers using the special tool.

Special tool 1.823.015.000 – Blade 3

4 Remove the seat belt run finishing piece and reel in the whole belt.

5 Recover the pillar trim.

Refitting

Check that the pillar trim is not damaged.

Insert the seat belt in the trim run and fit the finishing piece.

Fit the pillar trim on the internal retainers.

Fit the tailgate seal near the pillar trim.

Tighten the screws.

See Op. 7040G30 Boot light bulb holder - r r (right trim only)

See Op. 7040H50 Rear panel - r r

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040L40 Front compartment scuff strip - r r

Refit the parcel shelf.
