Instrument facia trim - r+r

Operation 7040A10 · Passenger compartment trim

Removal

See Op. 7045A10 L/h or r/h front seat (one) - r+r (left and right sides)

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

See Op. 3380A44 Handbrake/linkage protection - r+r

See Op. 7045B18 Front seat arm rest

See Op. 7040L28 Tunnel switch panel - r r

See Op. 7040L20 Tunnel trim - r r

See Op. 7040A12 Removable box on facia - arrange

Remove the radio.

See Op. 5040D18 Air conditioner control unit - r r

NOTE: Before working on the Air Bag system follow the safety instructions for working on the system carefully (See assembly drawing 5580C Air bag system ).

See Op. 5580C26 Passenger air bag switch - r r

See Op. 7040A37 Fuse box cover - r r

See Op. 5580C18 Air bag module - r+r

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

See Op. 7040A26 Steering column trim - r+r

See Op. 5580C12 Clock spring for air bag module on steering wheel r r

See Op. 5560B11 Analogue control panel - r+r or replace

See Op. 5560C56 Data not yet available

See Op. 5010D56 Solar sensor - r r after checking electrical system

See Op. 5010C12 Windscreen demister diffuser - r+r

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange

See Op. 7040A31 Flap assembly - r r

See Op. 7040A09 Passenger air bag compartment cover - r r

See Op. 5580C22 Air bag module passanger side r r

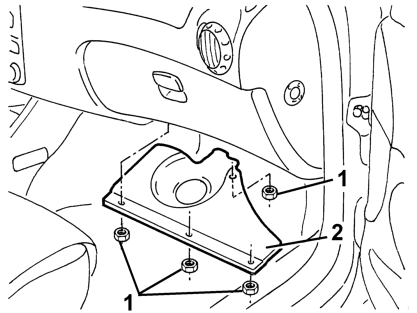

1 Working under the right side of the dashboard, undo the nuts fixing the bulkhead.

2 Remove the bulkhead.

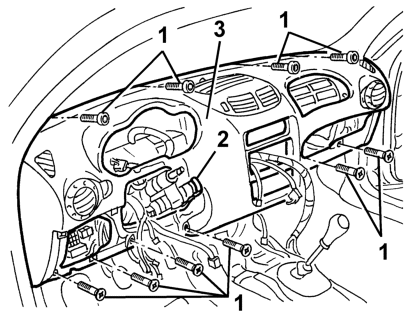

1 Undo the bolts securing the dashboard trim.

2 Remove the Alfa Code aerial from the ignition barrel.

3 Remove the dashboard trim.

If necessary, See Op. 7040A27 Facia trim - replace

Refitting

Check that the dashboard trim is not damaged.

If necessary, See Op. 7040A27 Facia trim - replace

Position the dashboard trim.

Fit the Alfa Code aerial on the ignition barrel.

Tighten the bolts fixing the dashboard trim.

Position the bulkhead under the right side of the dashboard trim and secure it with the nuts.

See Op. 5580C22 Air bag module passanger side r r

See Op. 7040A09 Passenger air bag compartment cover - r r

See Op. 7040A31 Flap assembly - r r

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange

See Op. 5010C12 Windscreen demister diffuser - r+r

See Op. 5010D56 Solar sensor - r r after checking electrical system

See Op. 5560C56 Data not yet available

See Op. 5560B11 Analogue control panel - r+r or replace

See Op. 5580C12 Clock spring for air bag module on steering wheel r r

See Op. 7040A26 Steering column trim - r+r

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

See Op. 5580C18 Air bag module - r+r

See Op. 7040A37 Fuse box cover - r r

See Op. 5580C26 Passenger air bag switch - r r

See Op. 5040D18 Air conditioner control unit - r r

Fit the radio.

See Op. 7040A12 Removable box on facia - arrange

See Op. 7040L20 Tunnel trim - r r

See Op. 7040L28 Tunnel switch panel - r r

See Op. 7045B18 Front seat arm rest

See Op. 3380A44 Handbrake/linkage protection - r+r

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

See Op. 7045A10 L/h or r/h front seat (one) - r+r (left and right sides)
