Tunnel trim - r r

Operation 7040L20 · Cabin floor covering

Removal

See Op. 7045A10 L/h or r/h front seat (one) - r+r (left and right sides)

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

See Op. 3380A44 Handbrake/linkage protection - r+r

See Op. 7045B18 Front seat arm rest

See Op. 7040L28 Tunnel switch panel - r r

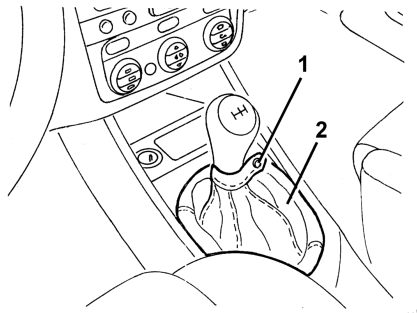

1 Open the retaining button on the gear lever protective boot.

2 Remove the gear lever protective boot, after disengaging the inner retainers.

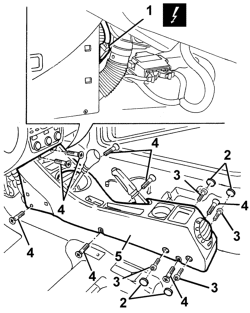

1 Disconnect the electrical connections.

Component D43 Dashboard/centre console coupling 1

2 Remove the covers.

3 Undo the bolts securing the armrest support.

4 Undo the bolts securing the tunnel trim.

5 Remove the tunnel trim.

If necessary:

See Op. 5010B46 Central air duct to rear seat - arrange

See Op. 5010C32 Air outlet on panel trim for rear seats - r r

See Op. 7065C72 Front cigar lighter socket/power point - fasten

See Op. 7065C73 Cigar lighter bulb - r r - includes r r cigar lighter

Disconnect the tunnel cover wiring from the retainers and remove it.

Refitting

Check that the tunnel trim is not damaged.

If removed:

Fit the tunner cover wiring and secure it with the retainers.

See Op. 7065C73 Cigar lighter bulb - r r - includes r r cigar lighter

See Op. 7065C72 Front cigar lighter socket/power point - fasten

See Op. 5010C32 Air outlet on panel trim for rear seats - r r

See Op. 5010B46 Central air duct to rear seat - arrange

Refit the tunnel trim and fix it with the bolts.

Tighten the bolts securing the armrest mounting.

Fit the covers.

Connect the electrical connection

Position the gear lever protective boot, engage the inner retainers and close the button.

See Op. 7040L28 Tunnel switch panel - r r

See Op. 7045B18 Front seat arm rest

See Op. 3380A44 Handbrake/linkage protection - r+r

See Op. 7040A65 Passenger compartment box lock , one , r r (left and right sides)

See Op. 7045A10 L/h or r/h front seat (one) - r+r (left and right sides)
