Front seat arm rest

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Front seats › Front seat arm rest

BodyFront seat arm rest

Front seat arm rest

Operation 7045B18 · Front seat head restraint/arm rest

Removal

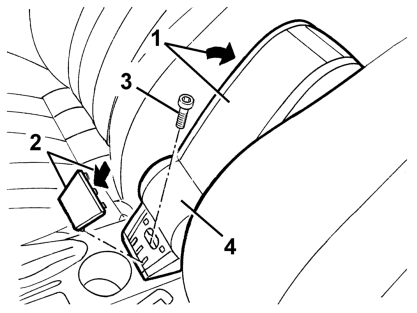

1 Raise the armrest.

2 Remove the cover, in the direction of the arrows.

3 Undo the armrest retaining bolts.

4 Remove the armrest.

Refitting

Check that the armrest is not damaged.

Refit the armrest and secure it with the bolt.

Fit the cover.

Lower the armrest.

13 Body & interior
