Drivers seat manual height adjustment device - r r

Operation 7045A36 · Front seat assembly

Removal

Using the adjustment lever, lift the seat to the end of its travel.

See Op. 7045A24 Squab knob - r r

See Op. 7045A43 Seat exterior guard - r r

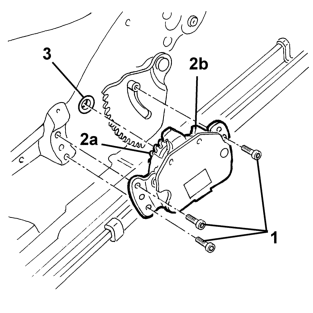

1 Unscrew the bolts

2 Release toothed wheel 2b from the toothed sector and remove manual device 2b for adjusting seat height.

3 Recover the bush.

Refitting

Check that the manual seat height adjustment device is not damaged.

Fit the bush.

Fit the device in its seating.

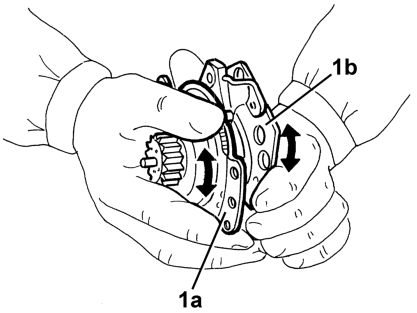

If the toothed wheel does not line up with the toothed sector, turn retaining plate 1a as far as necessary by hand in relation to rotation plate 1b.

Tighten the screws.

See Op. 7045A43 Seat exterior guard - r r

See Op. 7045A24 Squab knob - r r

Test the operation of the manual seat height adjustment device.
