Seat interior guard - r r

Operation 7045A44 · Front seat assembly

Removal

See Op. 7045A10 L/h or r/h front seat (one) - r+r

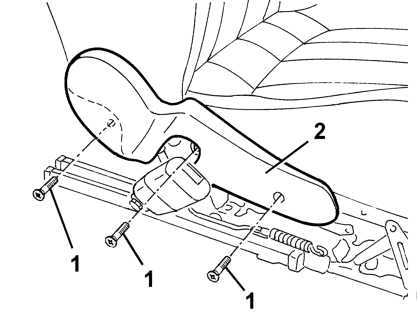

1 Undo the bolts securing the shield.

2 Remove the shield.

Refitting

Check that the guard is undamaged.

Fit the shield and tighten the bolts.

See Op. 7045A10 L/h or r/h front seat (one) - r+r
