Squab knob - r r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Front seats › Squab knob - r r

BodySquab knob - r r

Squab knob - r r

Operation 7045A24 · Front seat assembly

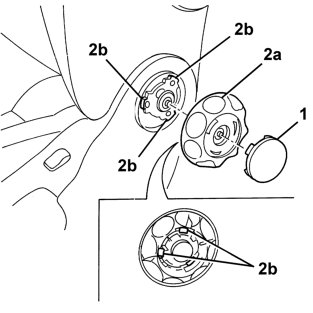

Removal

1 Move the seat to a suitable position and prise up the cover.

2 Remove knob 2b from interior retainers 2b.

Refitting

Check that the knob is not damaged.

Fit the knob in position and fit the internal retainers.

Fit the cover.

Check that the knob is working properly.
