D43 Dashboard/centre console coupling
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2002
- Section
- Intermediate junctions › D43 Dashboard/centre console coupling
Connectors and pin-outsD43 Dashboard/centre console coupling

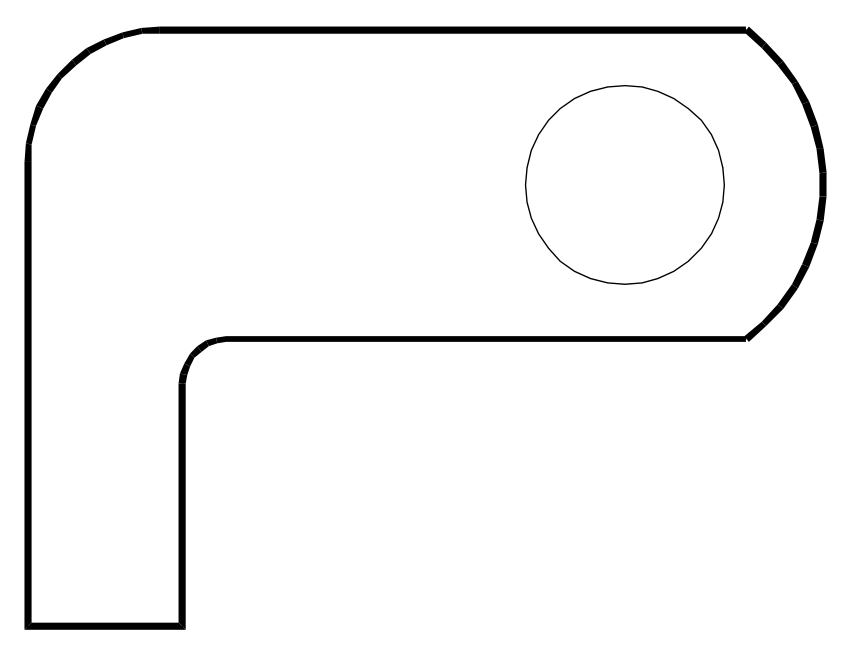

D43 Dashboard/centre console coupling

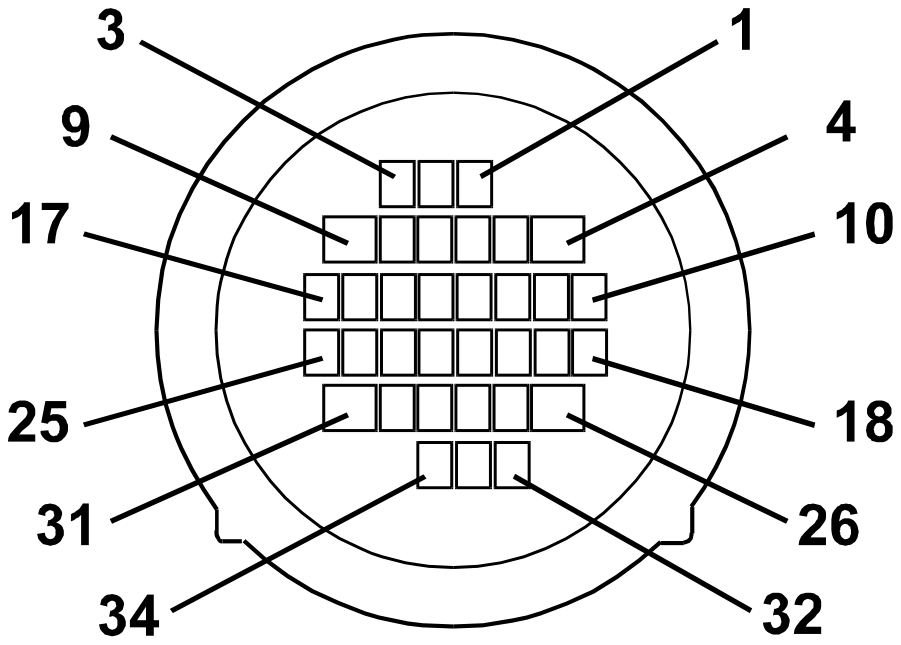

Connector D43 – dashboard harness (black)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | GV | yellow/green | D97D pin 2 | |
| 2 | 1.5 | RB | red/white | B02H pin 9 |
| 3 | 1.5 | NV | black/green | C15A pin 2 |
| 4 | MV | brown/green | B02H pin 15 | |
| 5 | CB | orange/white | B02H pin 16 | |
| 6 | NZ | black/violet | C15A pin 7 | |
| 7 | LV | blue/green | D97D pin 6 | |
| 8 | HV | grey/green | D01 pin 4 |
Connector D43 – centre console bridge harness (black)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | GV | yellow/green | P50 pin 1 | |
| 2 | 1.5 | RB | red/white | P50 pin 2 |
| 3 | 1.5 | NV | black/green | P50 pin 3 |
| 4 | NS | black/pink | H35 pin 7 | |
| 5 | CB | orange/white | H35 pin 5 | |
| 6 | NZ | black/violet | H35 pin 3 | |
| 7 | LV | blue/green | H35 pin 1 | |
| 8 | HV | grey/green | H35 pin 4 |
