16 · General

C15 Facia earth, driver's side

Connectors and pin-outsC15 Facia earth, driver's side

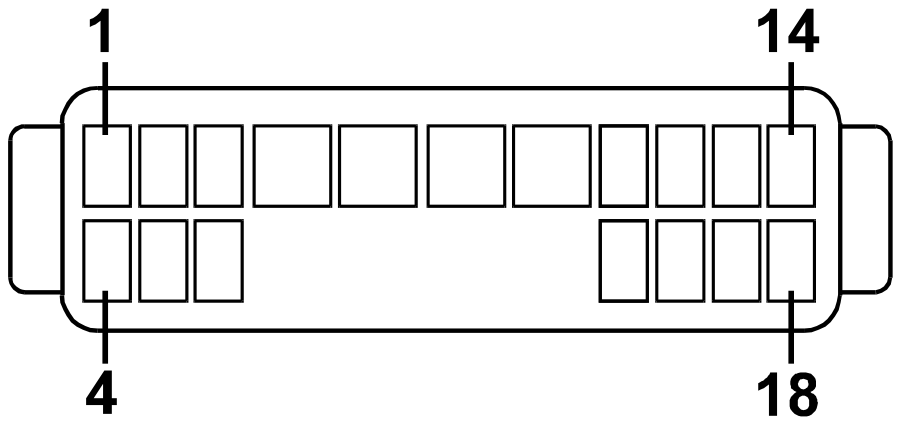

Connector C15A – dashboard harness (black)

Pin	mm²	Colour		To
1		N	black	B02H pin 10
2	1.5	NV	black/green	D43 pin 3
3	1.5	N	black	P20A pin 8
4		NZ	black/violet	P20D pin 12
5		N	black	I15B
6	2.5	NV	black/green	M01C pin 10
7		NZ	black/violet	D43 pin 6

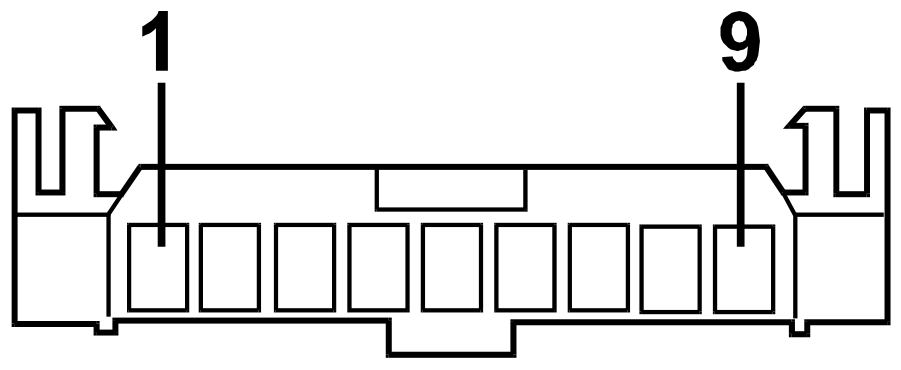

Pin	Colour		To
1	NZ	black/violet	M01D pin 8
2	N	black	H05C pin 5
3	NZ	black/violet	H05B pin 6
4	NZ	black/violet	H12A pin 2

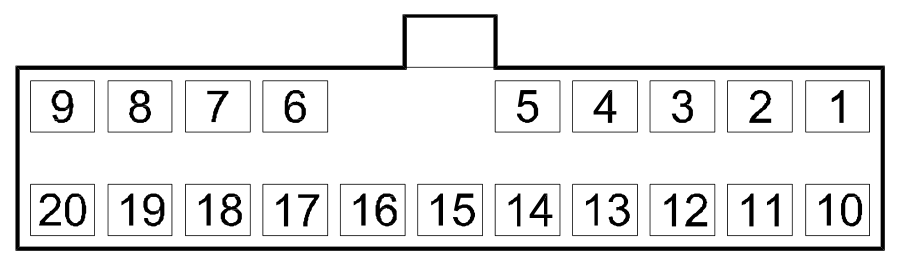

Pin	mm²	Colour		To
1		N	black	G10 pin 1
2		NZ	black/violet	G31 pin 1
3		NZ	black/violet	G32 pin 1
4		NZ	black/violet	K85 pin 2
5	1.5	NL	black/blue	D30 pin 13
6	1.5	NL	black/blue	D30 pin 31
