E4080 Trip computer

Description

The Trip Computer is only on the 'HIGH' instrument panel; it allows the following information to be displayed on the active matrix LCD:

• Instantaneous consumption [km/l]
• Average consumption [km/l]
• Range [km]
• Average speed [km/h]
• km travelled [km]
• Driving duration [hh:mm]
• Journey time [hh:mm]*
• km travelled [km]*
• Average speed [km/h]*

The values (*) are calculated from the last resest (pressing the SET button on the stalk unit right lever) or automatically after a stop of 2 h with the ignition off.

If an integrated radio-telephone-navigator is adopted, all the TRIP information is also displayed on the radio-telephone-navigator display.

For more details Characteristic of working principle 5560 Instruments .

The Trip Computer data are calculated within the instrument panel.

The instrument panel is a node on the CAN network through which it exchanges information with the Body Computer and the other electronic units. Wiring diagram E4010 INSTRUMENT PANEL

This diagram shows the operation of those functions relating to the instrument panel which also affect the Trip Computer.

Description of operation

The ignition-operated power supply (INT) of the instrument panel E50 reaches pin 1 of connector A through the line of fuse F37 of the unit under the dashboard B2; the direct supply reaches pin 2 of connector A through the line of fuse F53 of the unit under the dashboard B2; pin 7 of connector A is earthed (earth controlled by the Body Computer M1).

The instrument panel E50 is connected from pins 3 and 4 of connector A to the Body Computer M1 and via the latter to the whole CAN network: via CAN the signal for the electronic speedometer arrives (coming from the ABS control unit M50): this signal is replicated from pin 37 of M50 to pin 17 of connector A of the Body Computer M1.

The electronic rev counter receives the rpm signal coming via CAN from the engine management control unit M10.

The fuel gauge is controlled in accordance with the signals coming from the fuel gauge sender unit located in the fuel pump assembly N40 - at pins 4 and 15 of the Body Computer M1, and from here via CAN to the instrument panel E50.

The Trip Computer 'SET' button, located on the stalk unit H5, sends an earth signal to pin 8 of connector A of E50.

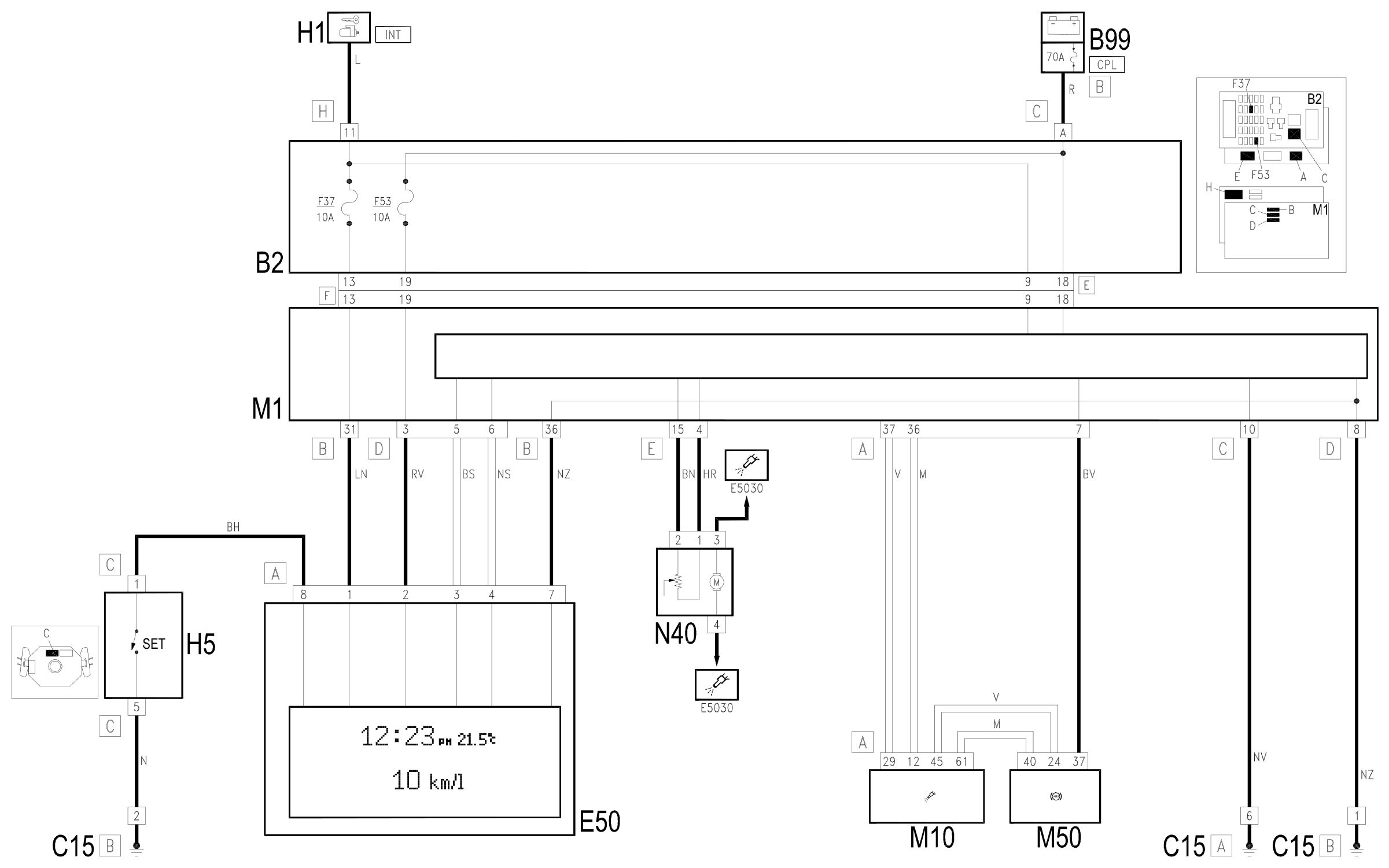

Wiring diagram

Components

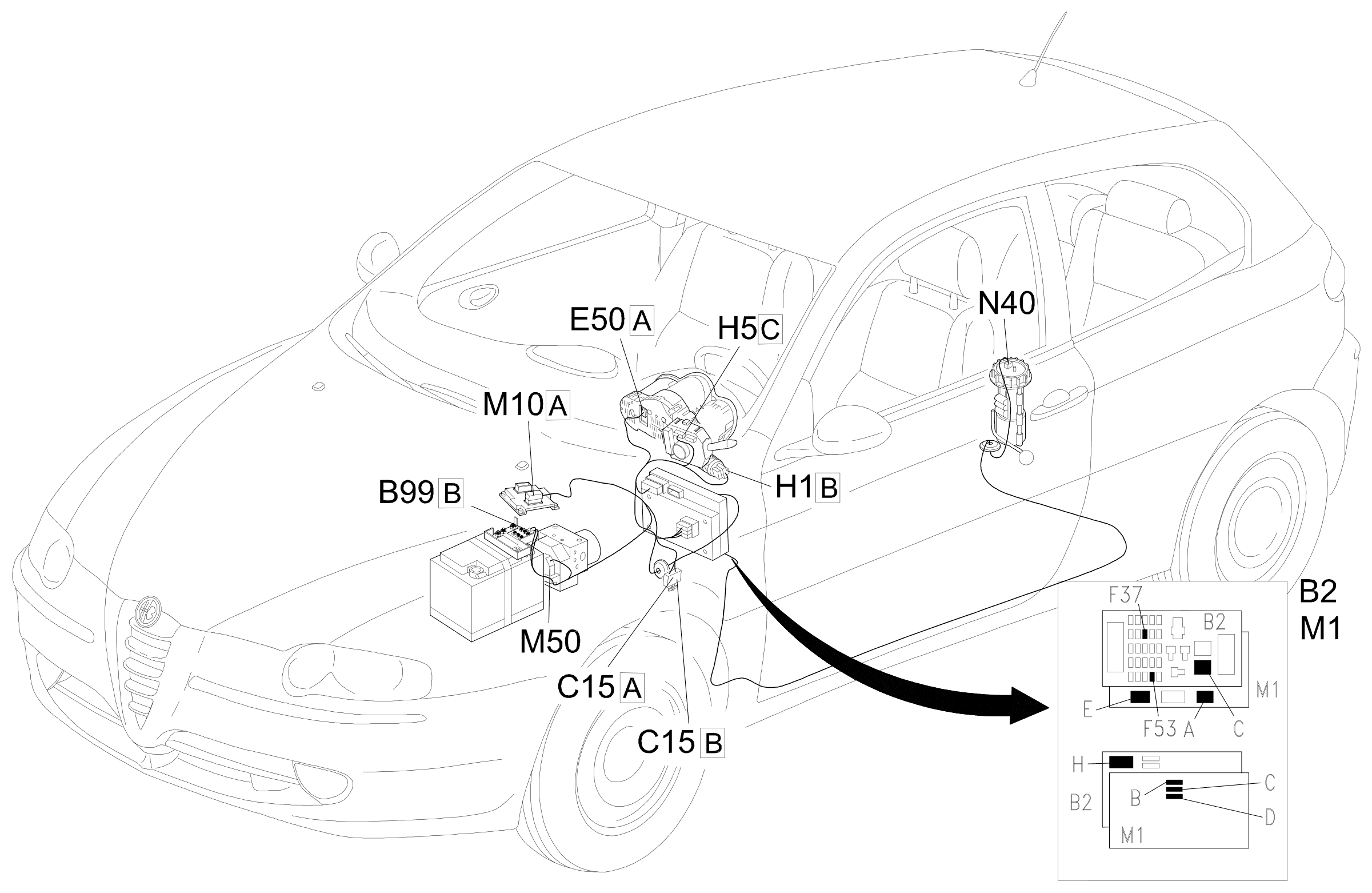

Component location
