Analogue control panel - r+r or replace

Operation 5560B11 · Analogue control panel

Removal

Lower the steering wheel and move it back to the end of travel position.

See Op. 7040A26 Steering column trim - r+r

See Op. 5580C18 Air bag module - r+r

NOTE: Follow the safety instructions for this operation.

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

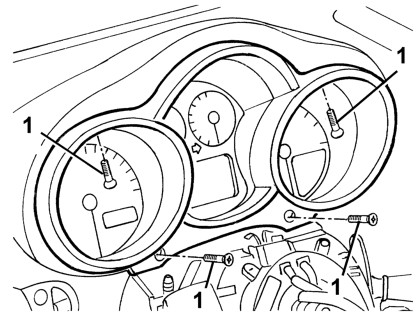

1 Unscrew the bolts

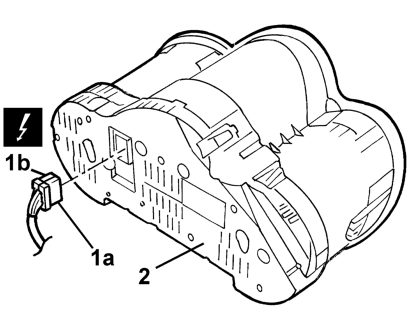

1 Move the instrument panel slightly and disconnect the electrical connections (1a, 1b).

Component E50A Instrument panel 1a

Component E50B Instrument panel 1b

2 Recover the control panel.

Refitting

Check that the instrument panel is not damaged.

Connect the electrical connection

Refit the instrument panel and fix it using the bolt.

See Op. 4110A11 Steering wheel - r+r for replacement or check for versions with air bag

See Op. 5580C18 Air bag module - r+r

See Op. 7040A26 Steering column trim - r+r

Check the operation of the instrument and the functions controlled by it.
