Panel with trip computer and headlamp alignment adjustment switches r r

Operation 5560B56 · Analogue control panel

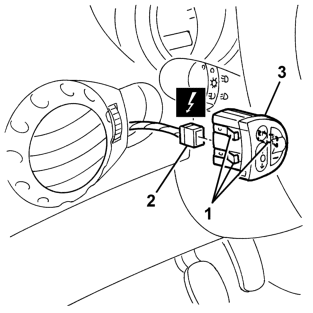

Removal

1 Release the retainers for the switch panel from the dashboard trim.

2 Disconnect the electrical connections.

Component H10 Controls for headlamp alignment, instrument lighting adjustment, milometer zeroing 2

3 Recover the switch panel.

Refitting

Check that the switch unit is undamaged.

Connect the electrical connection

Fit the switch panel in the dashboard trim.

Check the devices are working properly.
