PIN OUT

• 1 INT. +15 from fuse F37
• 2 +30 from fuse F53
• 3 B-CAN A
• 4 B-CAN B
• 5 Headlamp aglinment actuators signal reference
• 6 Dipped headlamps positive from fuse F13 for headlamp alignment
• 7 Earth
• 8 Negative signal from trip computer button on steering column switch unit
• 9 Signal from controls on PCS (left panel) (zero km, mode -)
• 10 Negative signal i.e. warning light failure/EOBD from N.C.M.
• 11 Signal from P.C.S. (headlamps up, headlamps down)
• 12 Inertia switch intervention signal FPS (NA)
• 13 C.A.B. failure warning light negative signal (AIR BAG)
• 14 Passenger Air Bag disabled warning light negative signal
• 15 Driver's seat belt not fastened negative signal
• 16 Signal from controls at P.C.S. (MODE MODE +)
• 17 Engine oil level sensor supply (TDS only)
• 18 Signal from engine oil lever sensor (TDS only)

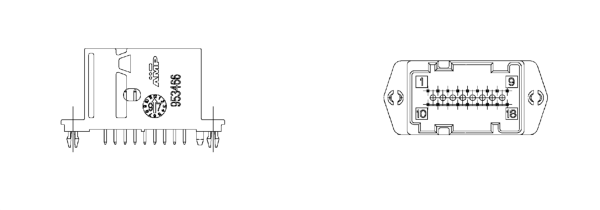

The diagram below illustrates the PIN OUT.
