INTRODUCTION

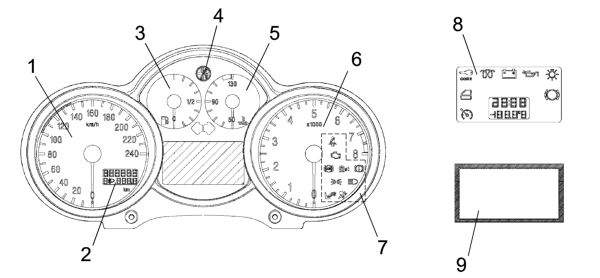

• 1 Speed indicator
• 2 LCD TN 1 (milometer/headlamp alignment)
• 3 Fuel gauge
• 4 Alfa Romeo logo
• 5 Water temperature gauge
• 6 Rev counter
• 7 Warning lights
• 8 Warning lights and LCD TN 2 (clock/outside temperature)
• 9 LCD DOT 2 matrix

The instrument panel on the 147 is fitted in the B-CAN network and takes the name NQS (instrument panel connector)

The signals involving the systems in the C-CAN network are available to the NQS from the Body Computer connector via an interface known as a Gateway.

The task of the NQS is to the display the vehicle operating parameters and inform the user of possible failures in the electronic on board systems.

There are two basic versions of N.Q.S. the LOW LINE type N.Q.S. and the HIGH LINE type N.Q.S.

The LOW LINE version has two LCDs in TN technology

The HIGH LINE version has a TN technology LCD and a DSTN technology DOT display

The instrument panels also come with either a grey background or a black background to match the interior fittings

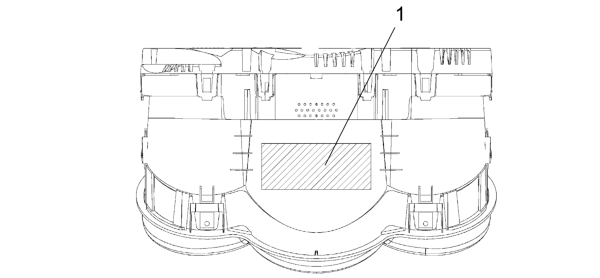

• 1 Label (Fiat design no./VDO design no./Fiat bar code/production date/Alfa Romeo class)

The top view is illustrated below.

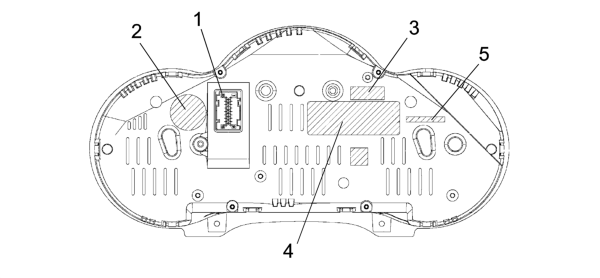

• 1 18 pin connector
• 2 Fiat Auto S.p.A. badge
• 3 Supplier marque (VDO)
• 4 Supplier management marque (containing the Fiat design no., the VDO design no. and the VDO bar code)
• 5 Marking for recycling

The rear view is illustrated below.
