Reversing light bulb - r+r

Operation 5550D26 · Brake and reversing lights

Removal

See Op. 5550D24 Reversing light - r+r

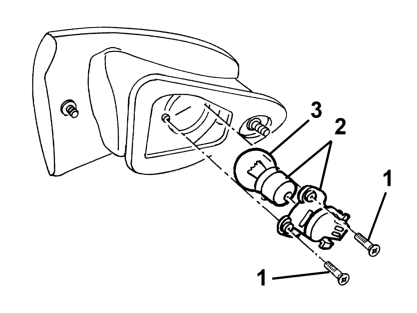

1 Unscrew the bolts

2 Remove the bulb holder and bulb.

3 Remove the bulb (bayonet fitting).

Refitting

Check the operation of the bulb.

Refit the bulb in the bulb holder.

Refit the bulb holder and secure it using the bolts.

See Op. 5550D24 Reversing light - r+r

Check the operation of the reversing lights.
