Horn tone - adjust

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Warning and manoeuvring indicators › Horn tone - adjust

Electrical equipmentHorn tone - adjust

Horn tone - adjust

Operation 5550B34 · Horns

Refer to op.. 7055B42 Supplementary wheel arch (one) - r+r (right side).

Refer to op.. 5550B30 L/h or r/h horn (one) - r+r

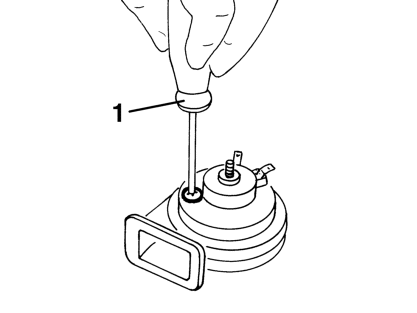

1 Work on the special screw to adjust the tone of the horn.

Test the horn to check that the tone is correct.

Refer to op.. 5550B30 L/h or r/h horn (one) - r+r

Refer to op.. 7055B42 Supplementary wheel arch (one) - r+r (right side).
