Brake light switch - r+r

Operation 5550D10 · Brake and reversing lights

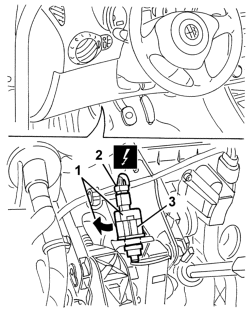

Removal

1 Working under the left side of the dashboard cover, rotate the switch in a clockwise direction through around 90 degrees and move it.

2 Disconnect the electrical connections.

Component I30 Brake pedal switch 2

3 Recover the switch.

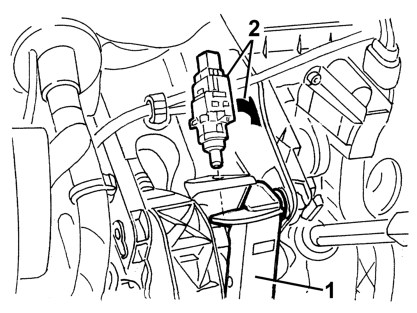

Refitting

1 Keep the brake pedal pressed and fit the switch in the position illustrated.

2 Rotate the switch in an anti-clockwise direction through around 90 degrees until it is properly fitted in the housing.

Release the brake pedal.

Check the operation of the brake lights.
